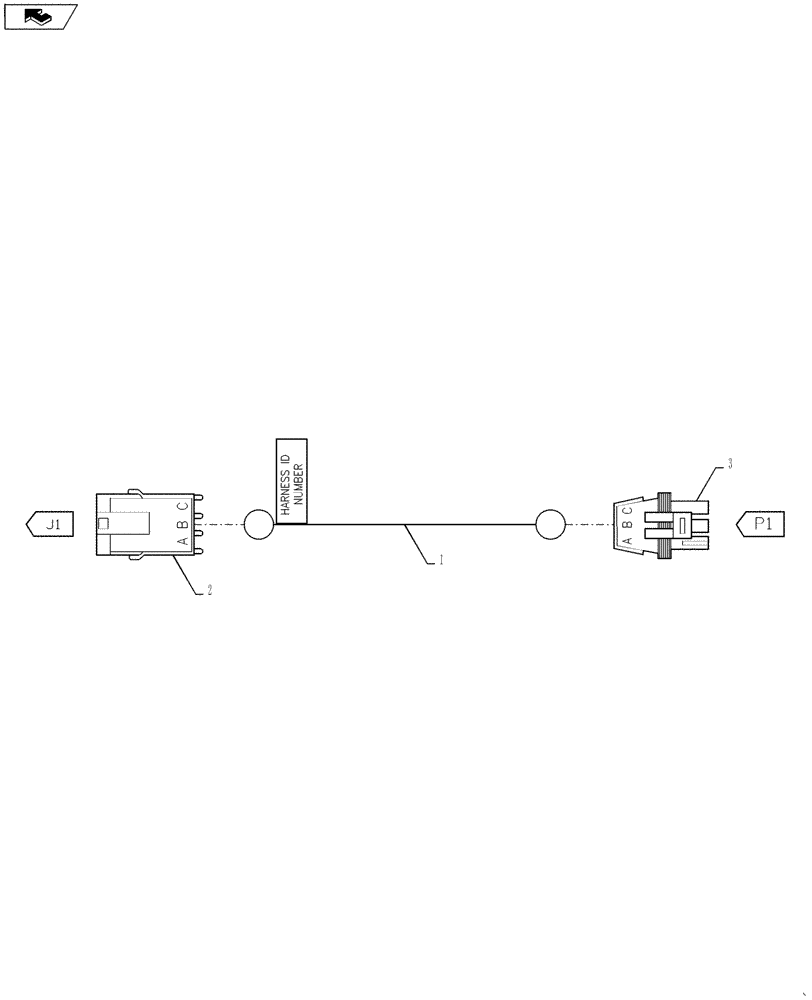

Запчасти Case IH 3230 (55.100.21) - EXTENSION HARNESS FOR 1ST, 2ND, 5TH, AND 6TH SECTIONS ON 6 SECTION LO-FLOW BOOM (55) - ELECTRICAL SYSTEMS

1

BN24224

HARNESS

Extension, 72", Used As Extension Harness For Boom Harness 343956A1 To Reach The 1st, 2nd, 5th, and 6th Valves In Lo-Flow Plumbing Configuration

1шт.

2

245485C1

ELEC CONNECTOR,Male, 3 Pin

Harness End, J1

1шт.

225119C1

TERMINAL

Harness End, J1

3шт.

225124C1

SEAL,2 - 2.9 mm2

Harness End, J1

3шт.

3

245484C1

ELEC CONNECTOR,3 Pin

Valve End, P1

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Valve End, P1

3шт.

225124C1

SEAL,2 - 2.9 mm2

Valve End, P1

3шт.
