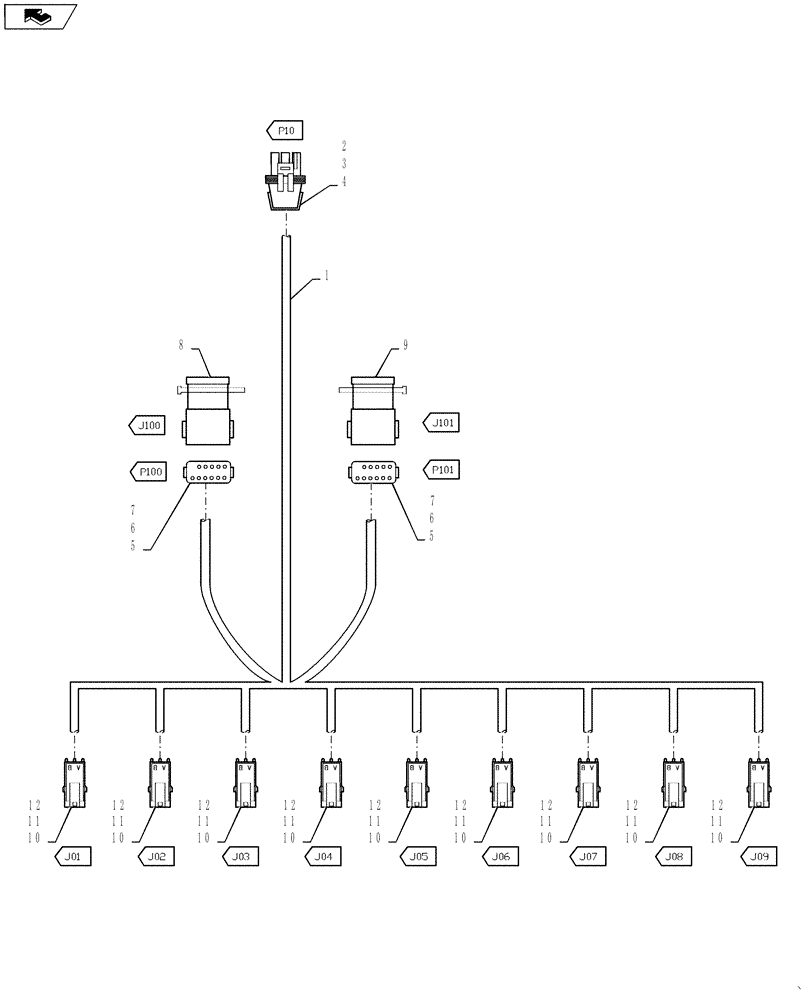

Запчасти Case IH 3230 (55.100.10) - HARNESS, AIM, 9 NOZZLE TIP (55) - ELECTRICAL SYSTEMS

1

87586923

WIRE HARNESS

Aim Command, 5-6 Section, 90' Boom, Outer Section, 9 Nozzle

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P10

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P10

3шт.

4

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Aim Command Central Harness, P10

1шт.

5

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P100/ P101

2шт.

6

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P100/ P101

2шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P100/ P101

24шт.

8

87381540

ELEC CONNECTOR

Splice Pack 2 x 6 Way, J100

1шт.

9

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, J101

1шт.

10

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J01 thru J09

9шт.

11

225119C1

TERMINAL

Nozzle Solenoid Connector, J01 thru J09

18шт.

12

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J01 thru J09

18шт.
