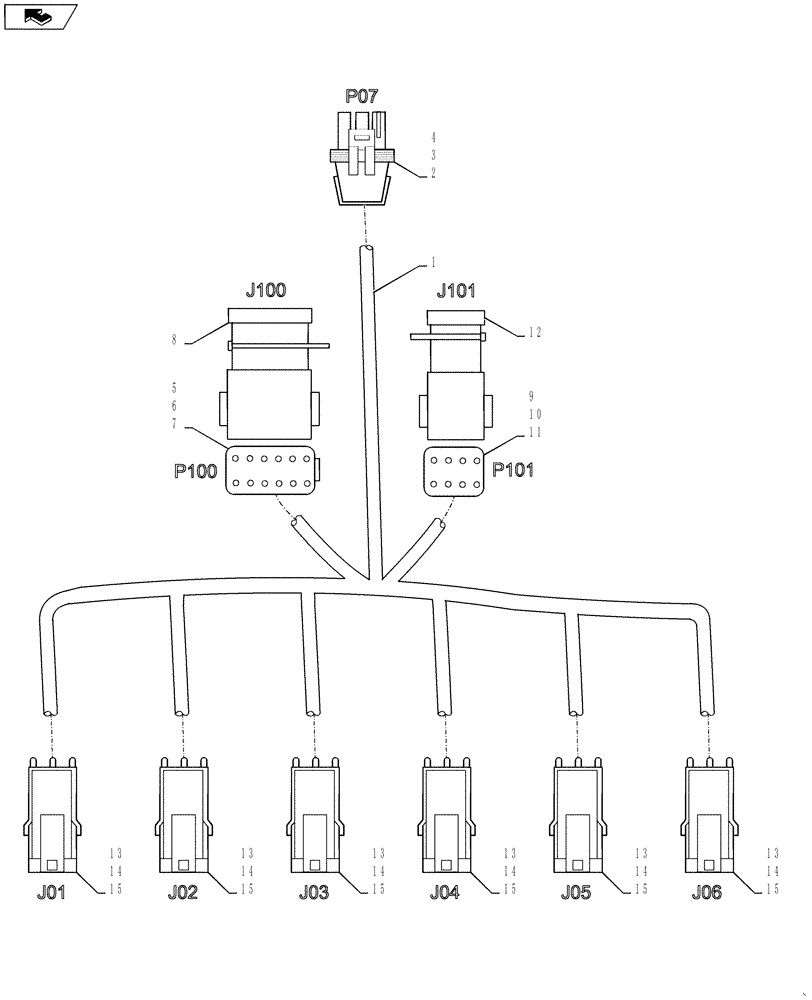

Запчасти Case IH 3230 (55.100.09) - HARNESS, AIM, 6 NOZZLE TIP (55) - ELECTRICAL SYSTEMS

1

87586918

WIRE HARNESS

Aim Command, 5 Section, 90' Boom, Center Section, 6 Nozzle

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P07

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P07

3шт.

4

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Aim Command Central Harness, P07

1шт.

5

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P100

1шт.

6

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P100

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P100

12шт.

8

87381540

ELEC CONNECTOR

Splice Pack 2 x 6 Way, J100

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Splice Pack, P101

1шт.

10

84806312

LOCKING TAB,Wedge Lock

Wedge, Splice Pack, P101

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P101

8шт.

12

87270259

ELEC CONNECTOR

8 Way Splice Pack, J101

1шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector

6шт.

14

225119C1

TERMINAL

Nozzle Solenoid Connector

12шт.

15

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector

12шт.
