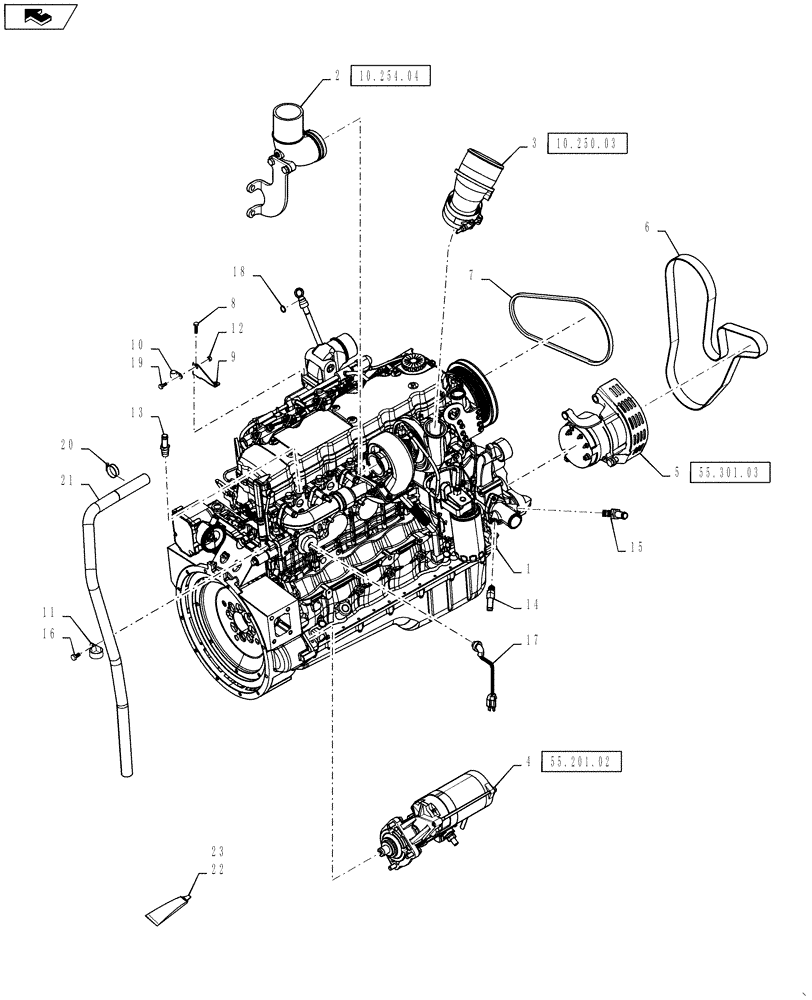

Запчасти Case IH 3230 (10.001.01) - ENGINE GROUP (10) - ENGINE

1

84159874

ENGINE

667TA-E3 NEF,164KW

1шт.

1

87538280

SHORT ENGINE

Block

1шт.

1

87538280R

REMAN-SHORT ENGINE

667TA-E3 NEF,164KW

1шт.

1

87538280C

SHORT ENGINE

Return Number

1шт.

1

87538280ER

REMAN-SHORT ENGINE

667TA-E3 NEF,164KW

1шт.

1

87538280EPAC

CORE-EPA ENGINE

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

EXHAUST ELBOW GROUP

1шт.

Refer to 10.254.04

1шт.

3

NSS

NOT SOLD SEPARAT

ELBOW, 3.5 X 45

1шт.

Refer to 10.250.03

1шт.

4

NSS

NOT SOLD SEPARAT

Starter group

1шт.

Refer to 55.201.02

1шт.

5

NSS

NOT SOLD SEPARAT

ALTERNATOR GROUP

1шт.

Refer to 55.301.03

1шт.

6

87519458

V-BELT

Rib, 1930 mm

1шт.

7

87518813

V-BELT,12.70 mm W

A 41"

1шт.

8

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

87579956

BRACKET

ENGINE OIL DIPSTICK

1шт.

10

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

13

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

14

87626014

FITTING

5/8 HB x M18 Thread

1шт.

15

87626015

FITTING

3/4 HB x M18 Thread

1шт.

16

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

1шт.

17

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

18

BN305412

O-RING

O-RING FOR -6 FFOR

1шт.

19

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

20

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

21

84195917

HOSE,22.23 mm ID x 914.00 mm, SAE 20R1

1шт.

22

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

24

BN307971

SEALANT

PRIMER, THREAD SEALANT

1шт.

25

BN1243001

LOCTITE

243-31 Removable

1шт.
