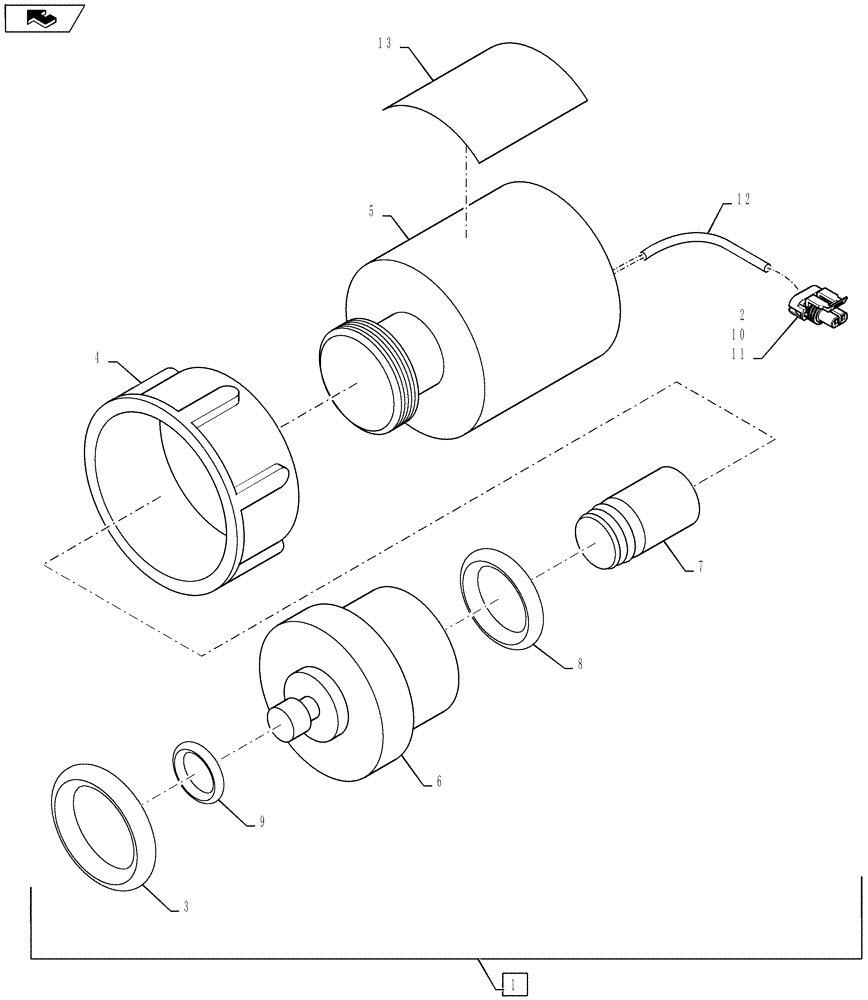

Запчасти Case IH 3230 (55.100.04) - SOLENOID, AIM, ARAG 150P (55) - ELECTRICAL SYSTEMS

1

87271451

SOLENOID

Aim Command, Arag, Complete, Includes Ref 2 thru 11

1шт.

2

NSS

NOT SOLD SEPARAT

2 Pin

1шт.

3

87272506

O-RING

Arag, 115 Viton

1шт.

4

84249074

CAP

Flynut, Arag

1шт.

5

87272502

SOLENOID

Coil Assembly, 7W, Overmolded

1шт.

6

87272507

HYDRAULIC VALVE

Grip Body, Arag

1шт.

7

87272503

PLUNGER

Assembly, PFE

1шт.

8

87272504

O-RING

0.015, Viton

1шт.

9

87272505

O-RING

0.008, Viton

1шт.

10

NSS

NOT SOLD SEPARAT

Socket Terminal

2шт.

11

NSS

NOT SOLD SEPARAT

Green Cable Seal

2шт.

12

NSS

NOT SOLD SEPARAT

Tubing

1шт.

13

NSS

NOT SOLD SEPARAT

Decal

1шт.
