(55.100.02) - FRAME ELECTRICAL GROUP

Запчасти Case IH 3230 (55.100.02) - FRAME ELECTRICAL GROUP (55) - ELECTRICAL SYSTEMS

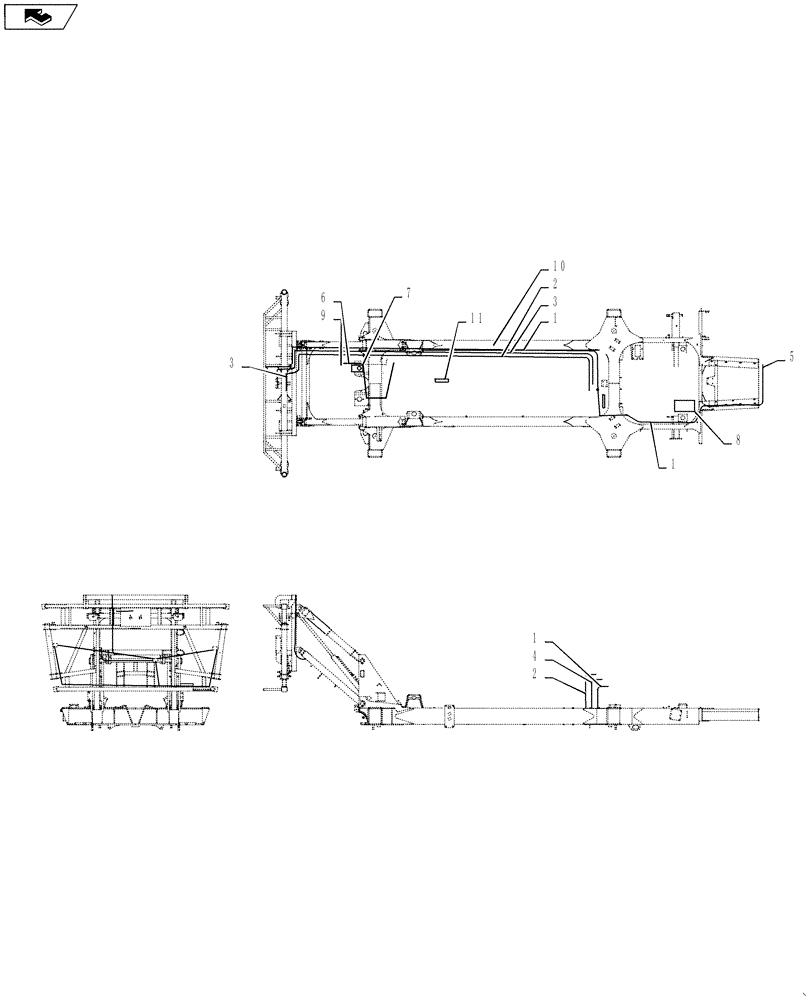

Схема запчастей Case IH 3230 - (55.100.02) - FRAME ELECTRICAL GROUP (55) - ELECTRICAL SYSTEMS
11
1
7
8
2
6
3
1
2
10
4
3
home
9
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87728479

HARNESS

MAIN FRAME

1шт.

2

87474695

HARNESS

Hydraulic Control, Frame

1шт.

3

87474696

HARNESS

Hydraulic Control, Center Section, Standard

1шт.

4

87722110

HARNESS

product control

1шт.

5

87756564

WIRE HARNESS

HEADLIGHT EXT

1шт.

6

87272141

WIRE HARNESS

Engine, Iveco

1шт.

Refer to 55.100.01

1шт.

7

NSS

NOT SOLD SEPARAT

INT. START RELAY

1шт.

Refer to 55.201.01

1шт.

8

BN322488

SENSOR

Speed

1шт.

Refer to 55.418.05

1шт.

8

87733890R

REMAN-SENSOR

3230 PATRIOT SPRAYER, Speed (7/09-), Reman for New PN BN322488

1шт.

8

87733890C

CORE-SENSOR

Return Number

1шт.

9

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

10

NSS

NOT SOLD SEPARAT

MOUNTING

1шт.

Refer to 55.100.03

1шт.

11

NSS

NOT SOLD SEPARAT

CONTROL, CAN

1шт.

Refer to 55.440.07

1шт.
