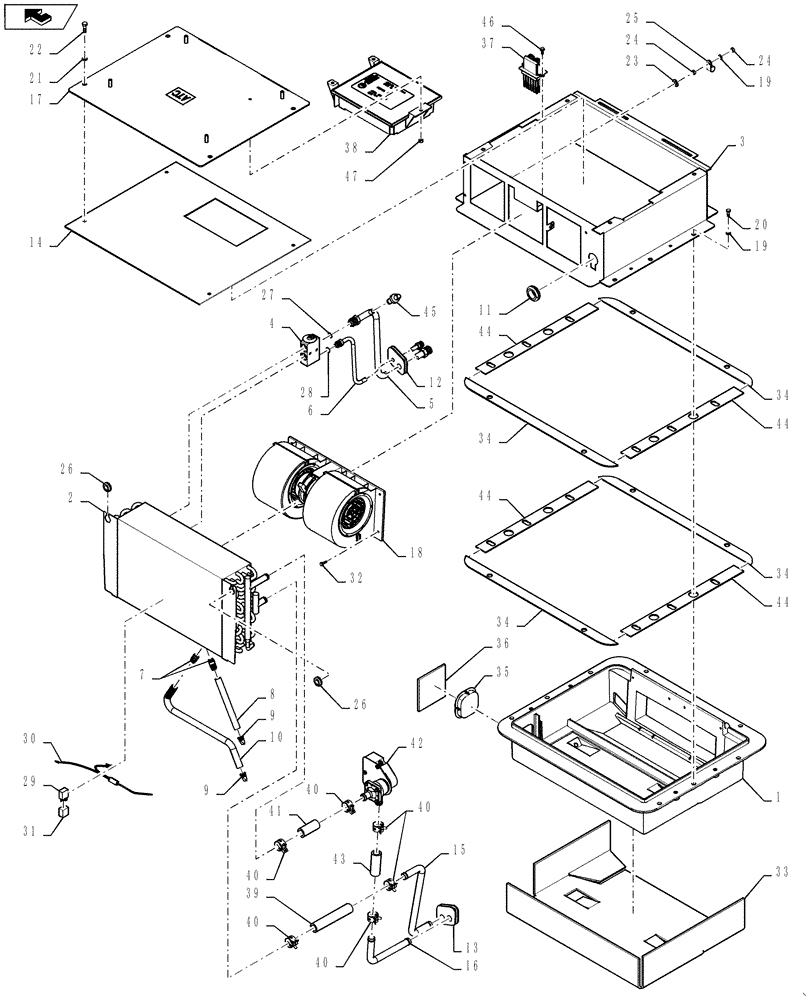

Запчасти Case IH 3230 (50.206.06) - HVAC/A, ATC UNIT (50) - CAB CLIMATE CONTROL

1

322996A1

BOX

evaporator

1шт.

2

86990262

CORE

Evaporator And Heater

1шт.

3

87454443

CASE ASSY.

Top, HVAC

1шт.

4

386535A1

VALVE

thermal expansion HFC-134A

1шт.

5

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

A/C suction

1шт.

6

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

A/C liquid

1шт.

7

1250522C3

FITTING

fitting, drain

2шт.

8

1977334C1

HOSE

Cut From: 198091C1, 610 mm (24 1/8")

1шт.

9

109239C2

CHECK VALVE

Drain

2шт.

10

87574393

HOSE,12.95 mm ID x 1055.00 mm

Condensate

1шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

bulkhead, A/C

1шт.

13

322990A1

GROMMET

bulkhead, heater

1шт.

14

87324951

GASKET,3mm Thk

Top Cover, HVAC

1шт.

15

322985A1

HEATER TUBE

heater outlet

1шт.

16

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

heater inlet

1шт.

17

87306495

COVER

Top HVAC

1шт.

18

323610A1

BLOWER

cab, 12V

1шт.

84222524R

REMAN-BLOWER

3230 (7/09-), Reman for New P/N 323610A1

1шт.

84222524C

CORE-BLOWER

Return Number

1шт.

19

892-11006

LOCK WASHER,M6

5шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

21

892-11008

LOCK WASHER,8mm ID

4шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

23

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

25

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

26

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

27

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

28

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

29

105849A1

RELAY

20 amp

1шт.

30

323016A1

SENSOR

thermistor

1шт.

31

87323958

HARNESS

WIRE ATC

1шт.

32

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

33

324484A1

INSULATOR

HVAC, bottom

1шт.

34

322995A1

GASKET,3mm Thk

flange seal

4шт.

35

368313A1

PLASTIC PLUG

HVAC

1шт.

36

87306773

FOAM INSULATION

Foil Side

1шт.

37

47788712

SERVICE KIT

DRIVER BLOWER LINEAR

1шт.

38

84143879

MODULE

ATC, CONTROL

1шт.

84268957R

REMAN ELECT CONTROL

3230 (9/07 - ) Reman For New P/N 84143879

1шт.

84268957C

CORE-ELECTRONIC CONT

Return Number

1шт.

39

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut from 97252CX

1шт.

40

1954736C1

HOSE CLAMP,#24

6шт.

41

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Supply, Cut from : 97252CX

1шт.

42

427356A1

CONTROL VALVE

Assembly, Heater

1шт.

43

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Supply, Cut from : 97252CX

1шт.

44

322994A1

GASKET,3mm Thk

flange seal

4шт.

45

87323829

SWITCH, A/C LOW PRES

1шт.

46

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

47

832-46404

NUT,M4 x .7, Cl 8

1шт.
