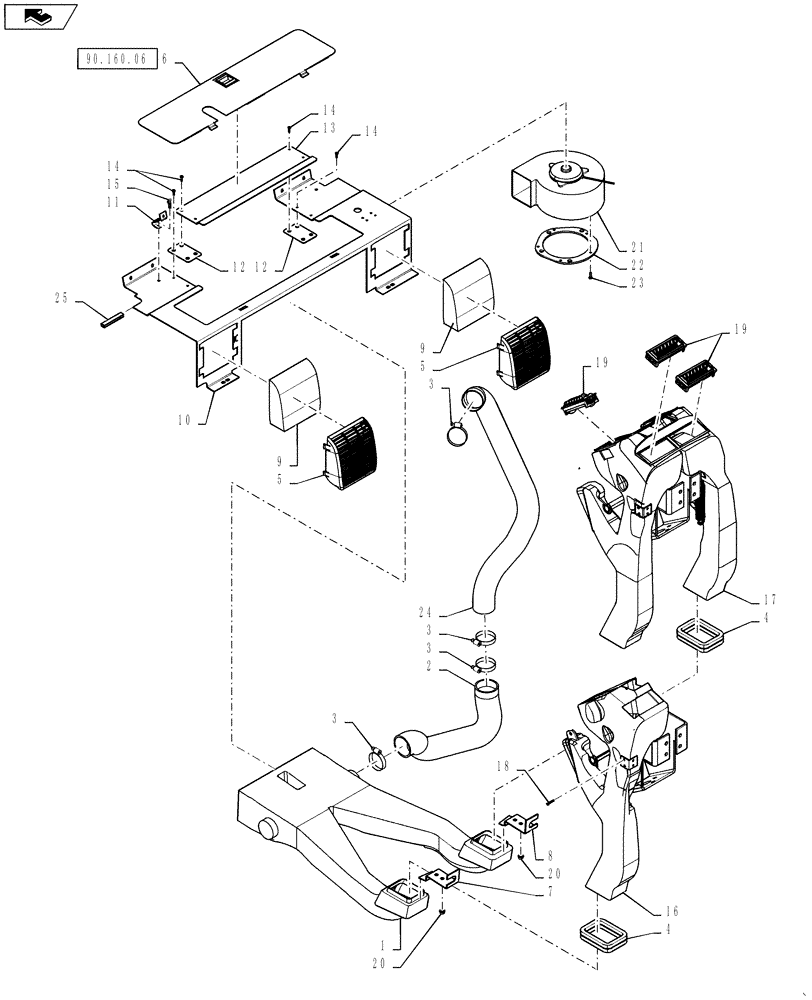

Запчасти Case IH 3230 (50.206.04) - CLIMATIZATION PACKAGE (50) - CAB CLIMATE CONTROL

1

87308202

DUCT

MAIN SUPPLY

1шт.

2

256331A2

HOSE

LH FENDER TRIM

1шт.

3

87016723

HOSE CLAMP,58.6mm - 82.5mm

4шт.

4

87452817

GASKET

FRONT SUPPLY DUCT

4шт.

5

301180A3

VENT (AIR)

RECIRC

2шт.

6

87319298

COVER

Assembly, Electrical

1шт.

7

298465A2

SUPPORT

BRACKET, EXT TRIM, FWD LH

1шт.

8

300432A2

SUPPORT

BRACKET, EXT TRIM, FWD RH

1шт.

9

293615A1

FILTER

RECIRCULATION AIR

2шт.

10

87269666

EXTENSION

RECIRC AIR SHE

1шт.

11

87269670

BRACKET

REAR CARGO NET

2шт.

12

87269672

COVER

mount

2шт.

13

87269668

COVER

ELECTRICAL

1шт.

14

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

8шт.

15

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

8шт.

16

87310030

PANEL

DUCT ASSY, RH

1шт.

17

87310029

DUCT

ASSY, LH PANEL

1шт.

18

87343604

SCREW,Phil Pan Hd, M5 x 25mm, Cl 4.8, Full Thd

Hex, M5 x 25, PHD, 4.8 DOR

2шт.

19

363882A1

VENT

assembly, without holes, no pop wheat

7шт.

20

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

21

87107380

BLOWER

Cab Pressurizer

1шт.

22

255220A2

GASKET,4.8mm Thk

BRACKET TO BLWR

1шт.

23

87016450

SCREW,Pan, #10 - 32 x 5/8"

4шт.

24

303732A1

TUBE

FENDER TRIM LOUVER

1шт.

25

87616967

RUBBER SEAL

CAB, REAR SHELF

1шт.
