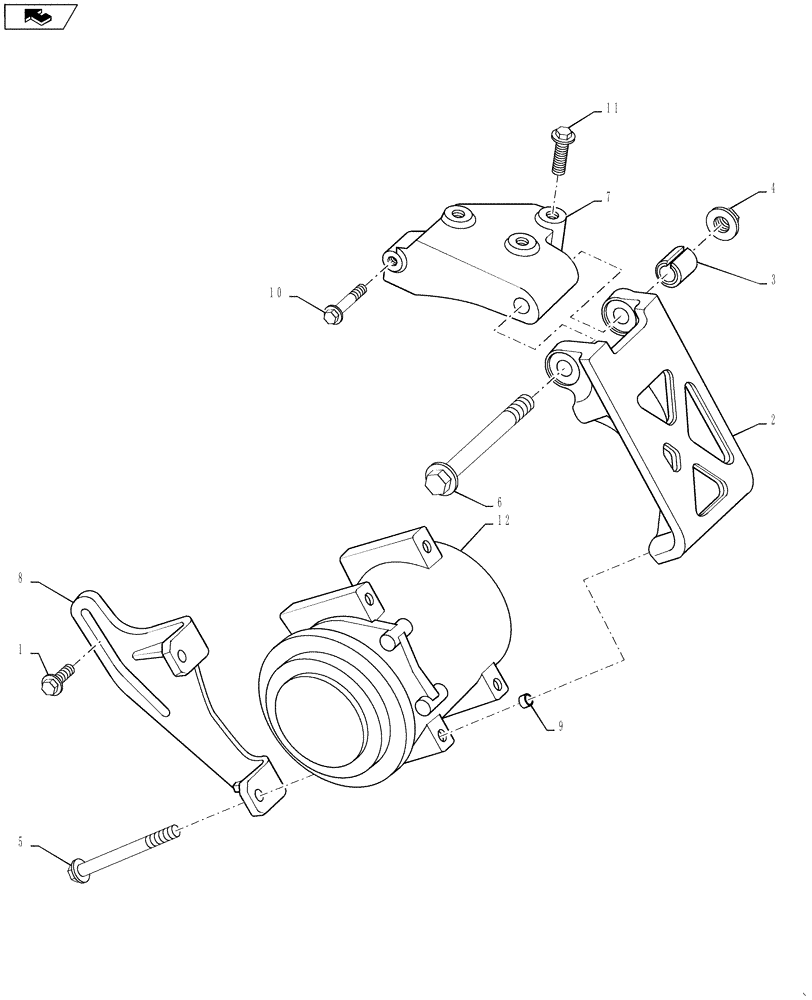

Запчасти Case IH 3230 (50.200.03) - A/C COMPRESSOR ATTACHING GROUP (50) - CAB CLIMATE CONTROL

1

87803136

SCREW

1шт.

2

2852623

SUPPORT

1шт.

3

2852626

SPACER,12.5mm ID x 22.4mm OD x 27mm L

1шт.

4

2852627

FLANGE NUT,Hex, M12 x 1.75

1шт.

5

2852628

SCREW,Hex, M8 x 1.25 x 105mm

4шт.

6

2852925

SCREW,Hex, M12 x 1.75 x 130mm

1шт.

7

2854887

BRACKET

AIR CONDITIONER

1шт.

8

2854890

BELT TENSIONER

COMPRESSOR

1шт.

9

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

DOWEL

2шт.

10

4899147

SCREW,Hex, M6 x 1 x 45mm

1шт.

11

4899144

SCREW,Hex Flg, M10 x 1.5 x 50

3шт.

12

87430122

AIRCOND. COMPRESSOR

1шт.

84159489R

REMAN-COMPRESSOR,12V, W/ Clutch, W/ Pulley

3230 (7/09-) Reman for new P/N 87430122

1шт.

84159489C

CORE-COMPRESSOR

Return Number

1шт.
