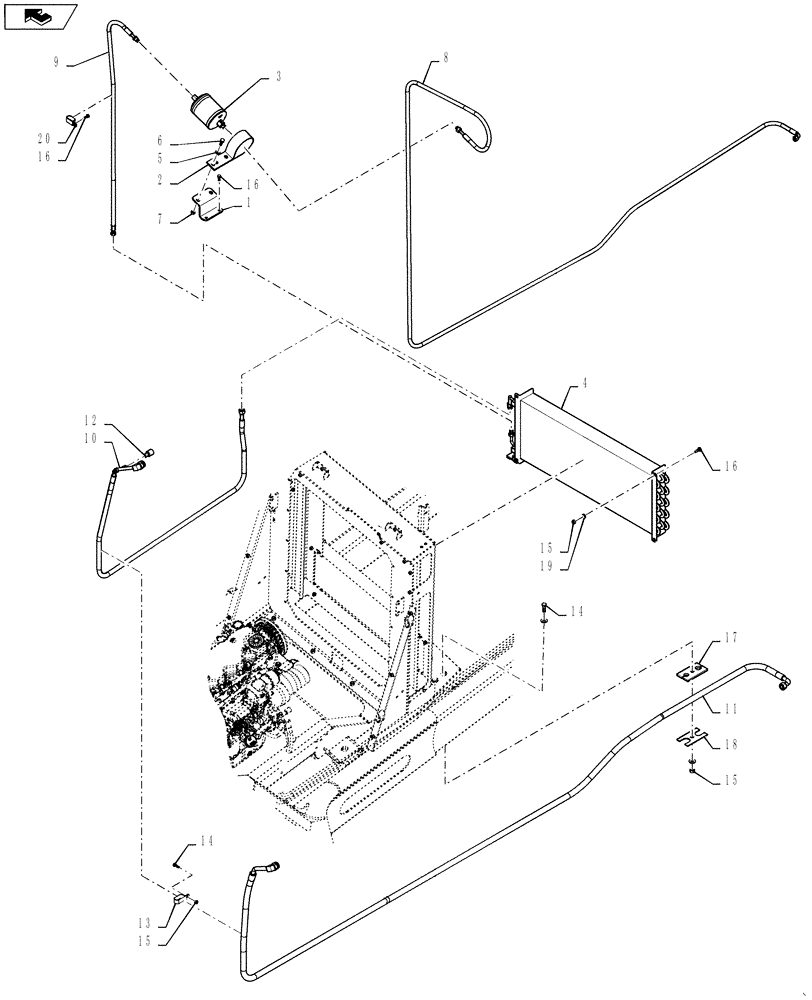

Запчасти Case IH 3230 (50.200.02) - AIR CONDITIONING GROUP (50) - CAB CLIMATE CONTROL

1

87270649

MOUNTING PLATE

DRYER MOUNT

1шт.

2

D145289

SUPPORT

RECIEVER DRYER

1шт.

3

295006A1

RECEIVER-DRYER

horizontal mount

1шт.

4

87270664

CONDENSER

A/C

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

6

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

8

87270202

HOSE

CAB TO DRYER

1шт.

9

87270636

HOSE

DRYER TO COND

1шт.

10

87518803

HOSE

, Serial Range: Condensor-Compressor

1шт.

11

87518804

HOSE

, Serial Range: Compressor-Cab

1шт.

12

87000227

SWITCH, A/C HIGH PRE

High N.C.

1шт.

13

R54363

CLAMP

double, DIA. 23.8

1шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

9991588

NUT,M8 x 1.25, Cl 8

4шт.

16

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

17

87270790

SEAL

A/C HOSES

1шт.

18

87270791

PLATE

SEAL, A/C HOSES

1шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

20

L101181

CLAMP,0.75" D Clamping pipes x 2

DOUBLE

1шт.
