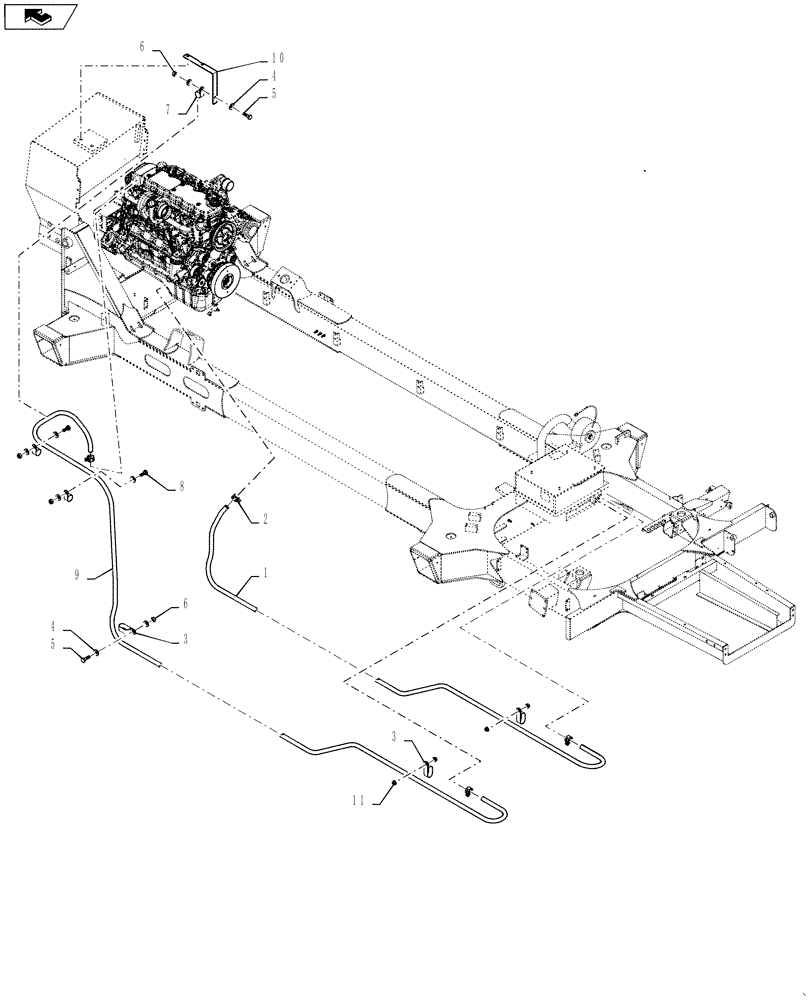

Запчасти Case IH 3230 (50.100.01) - HEATER GROUP (50) - CAB CLIMATE CONTROL

1

87524515

HOSE 5/8" x 202" RETURN

1шт.

Order BN312581 and cut to length

1шт.

2

1954736C1

HOSE CLAMP,#24

4шт.

3

R54363

CLAMP

double, DIA. 23.8

3шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

7

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

8

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

9

87524513

HOSE 5/8 ID X 263 SUPPLY

1шт.

Order BN312581 and cut to length

1шт.

10

87524509

SUPPORT

HEATER HOSE

1шт.

11

87344227

SERRATED NUT

HEX M8

4шт.
