(48.110.04) - SUSPENSION, ACTIVE HYDRAULIC

Запчасти Case IH 3230 (48.110.04) - SUSPENSION, ACTIVE HYDRAULIC (48) - TRACKS & TRACK SUSPENSION

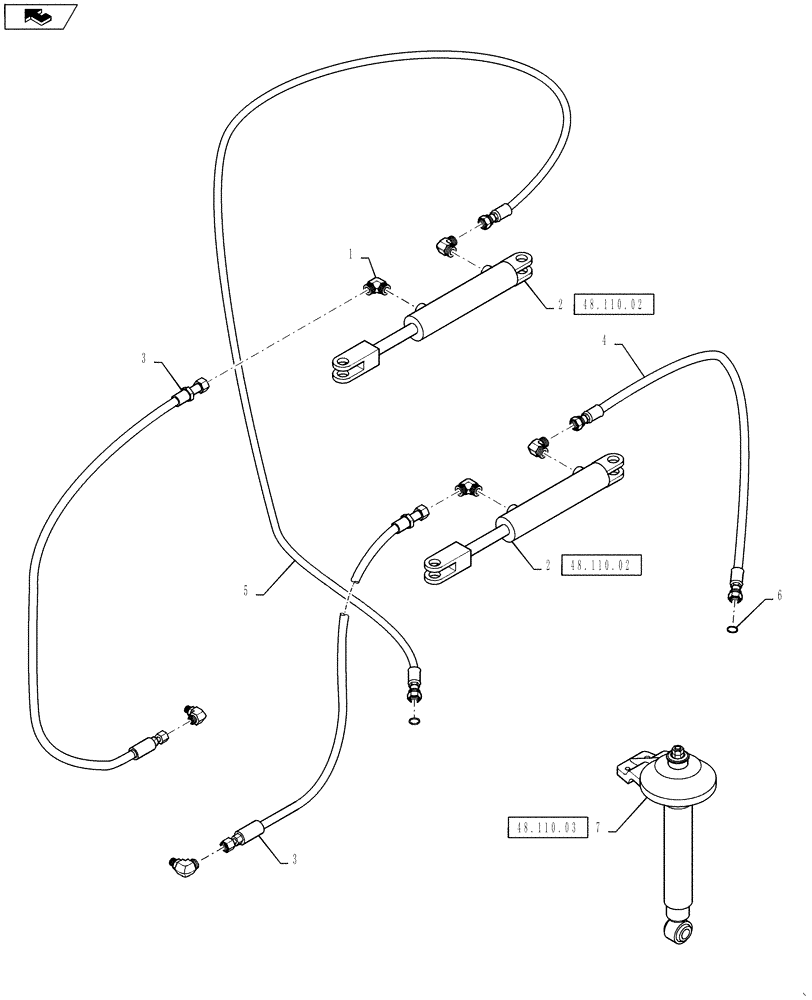

Схема запчастей Case IH 3230 - (48.110.04) - SUSPENSION, ACTIVE HYDRAULIC (48) - TRACKS & TRACK SUSPENSION
7
3
4
3
5
6
home
2
48.110.02
48.110.02
48.110.03
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND

6шт.

2

NSS

NOT SOLD SEPARAT

SUSPENSION

2шт.

3

BN313058

HOSE ASSY.

4 X 139

2шт.

4

BN313061

HOSE,6.35mm ID x 5080mm L, SAE 100R17

4 X 200

1шт.

5

BN307828

HOSE ASSY.,6.35mm ID x 4216.4mm L, SAE 100R17

1шт.

6

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR 4 FFOR

2шт.

7

BN313250

SUSPENSION

SHOCK

2шт.
