Запчасти Case IH 3230 (41.204.01[02]) - STEERING COLUMN ASSEMBLY (Jul 1 2011 10:07:00.4992 AM) (41) - STEERING

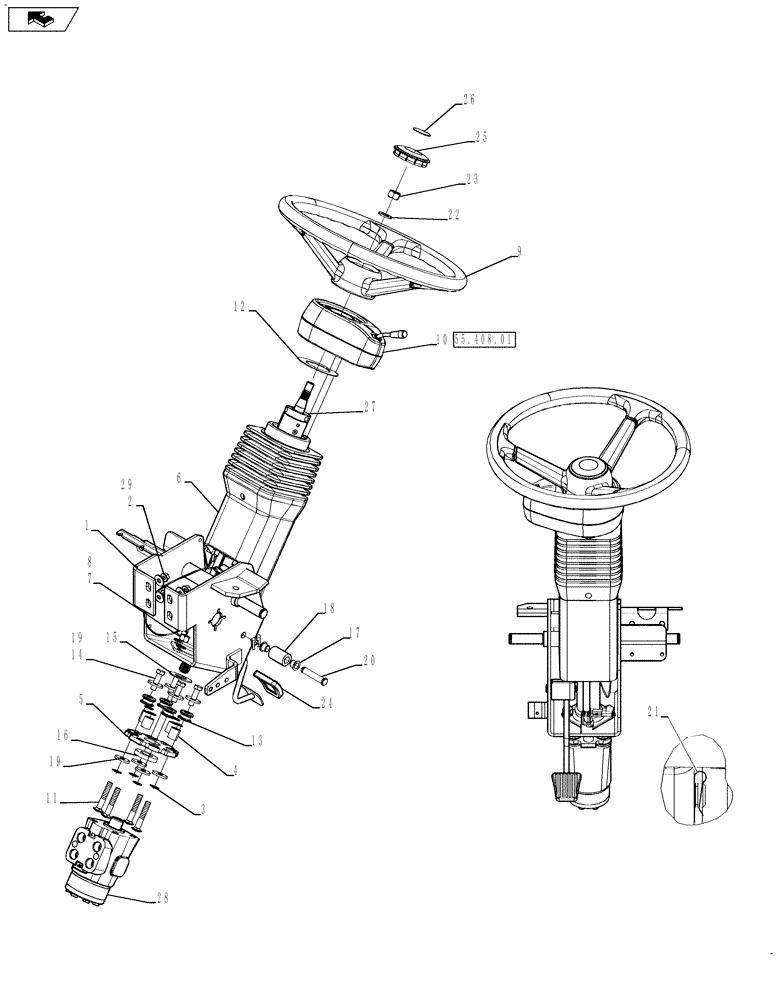

Схема запчастей Case IH 3230 - (41.204.01[02]) - STEERING COLUMN ASSEMBLY (Jul 1 2011 10:07:00.4992 AM) (41) - STEERING
26
19
28
6
27
15
17
1
16
19
25
55.408.01
22
18
home
29
21
8
24
2
23
10
11
7
13
14
9
20
4
3
5
12

Артикул

Название

Примечание

Количество

1

84276367

BRACKET

Assy, Front Console

1шт.

2

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

3

329677A1

RETAINER,9.09mm ID x 19.87mm OD x 0.38mm Thk

Bolt

8шт.

4

295478A1

SPACER

Steering Hand Pump

4шт.

5

366073A1

PLATE

Steering Hand Pump Mounting

1шт.

6

84269917

STEERING COLUMN

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

412141

NUT,M10 x 1.5, Cl 8

4шт.

9

301200A1

STEERING WHEEL

Deluxe

1шт.

9

359033A1

STEERING WHEEL

Black Leather, Luxury Cab

1шт.

10

412350A1

ASSEMBLY

Self Cancelling Turn Assembly

1шт.

See Fig 55.408.01

1шт.

11

370105A2

BOLT

Low Profile Round Head Short, M10 x 60 ZND

4шт.

12

1977448C2

WASHER

Support, Boot

1шт.

13

434177A1

ISOLATOR

Center Bonded

4шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

15

307559A1

SEAL,25mm ID x 48mm OD x 2mm Thk

Steering Shaft Noise

1шт.

16

296775A2

SEAL

Steering Shaft Noise

1шт.

17

1533540C1

BUSHING,12mm ID x 14mm OD x 12mm L

2шт.

18

295191A3

PEDAL

Foot Release

1шт.

19

86636827

WASHER,0.41" ID x 1.25" OD x 0.13" Thk

8шт.

20

295192A1

PIN,12mm OD x 62.5mm L

Foot Release Pedal

1шт.

21

277059A1

CLIP

1шт.

22

895-11014

WASHER,M14 x 28 x 2.5

1шт.

23

86639148

NUT,M14 x 1.5, Cl 8

1шт.

24

323657A1

PAD

Foot Release Pedal

1шт.

25

361024A3

CAP

Steering Wheel

1шт.

26

87613502

INSERT

CASE IH

1шт.

27

253679A1

RING

Magnet, For Self Cancelling System

1шт.

28

87269664

PUMP

Steering

1шт.

29

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

Выбрано товаров: 31
