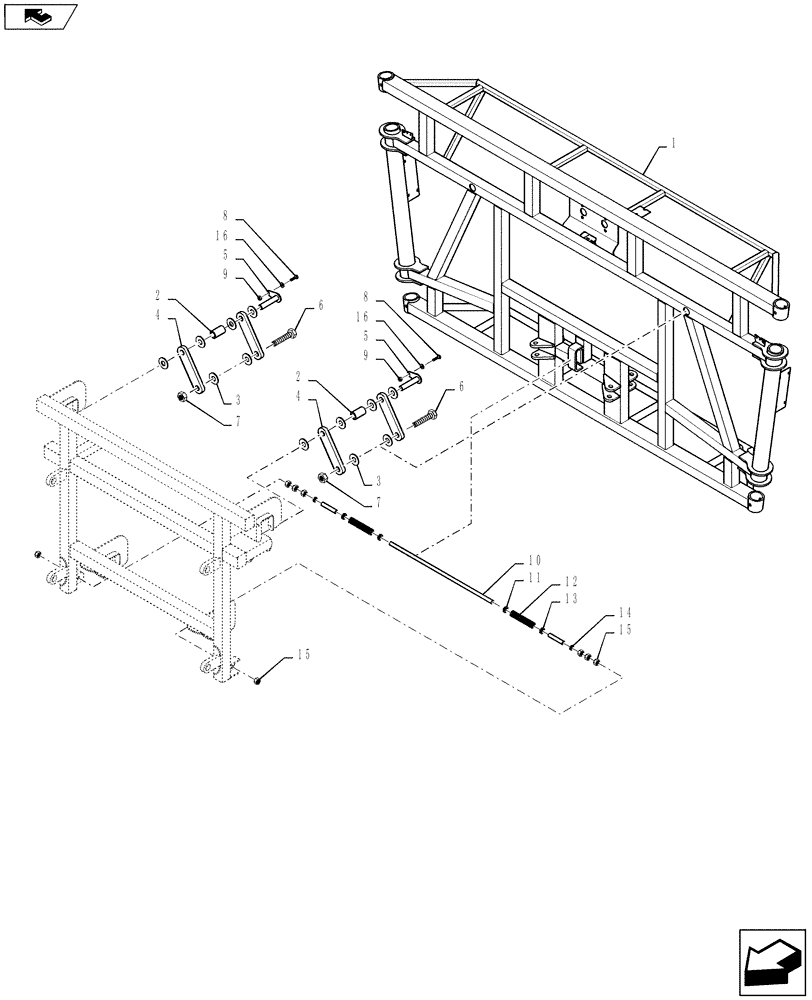

Запчасти Case IH 3230 (39.105.02) - BOOM CENTER SECTION GROUP (39) - FRAMES AND BALLASTING

1

87272748

FRAMEWORK

Center Section

1шт.

2

BN308003

BUSHING

HANGER

2шт.

3

87529124

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1.062 x 2.50 x .165 CST, DOR

12шт.

4

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

5

BN306785

PIN

WELDMENT

2шт.

6

87310330

BOLT

1-14 x 6, Gr 5

2шт.

7

87310319

JAM NUT,1"-14, G8

4шт.

8

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

2шт.

9

87344003

NUT,M10-1.5, 10, DOR

M10 x 1.5, Cl 8

2шт.

10

BN306783

SHAFT

THREADED 1"

1шт.

11

896-16024

WASHER,26mm ID x 56mm OD x 6mm Thk

4шт.

12

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

13

BN306784

TUBE

RND SPACER 1.25 X 12G

2шт.

14

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

2шт.

15

87343879

JAM NUT

Jam 1"-8, G5

8шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.
