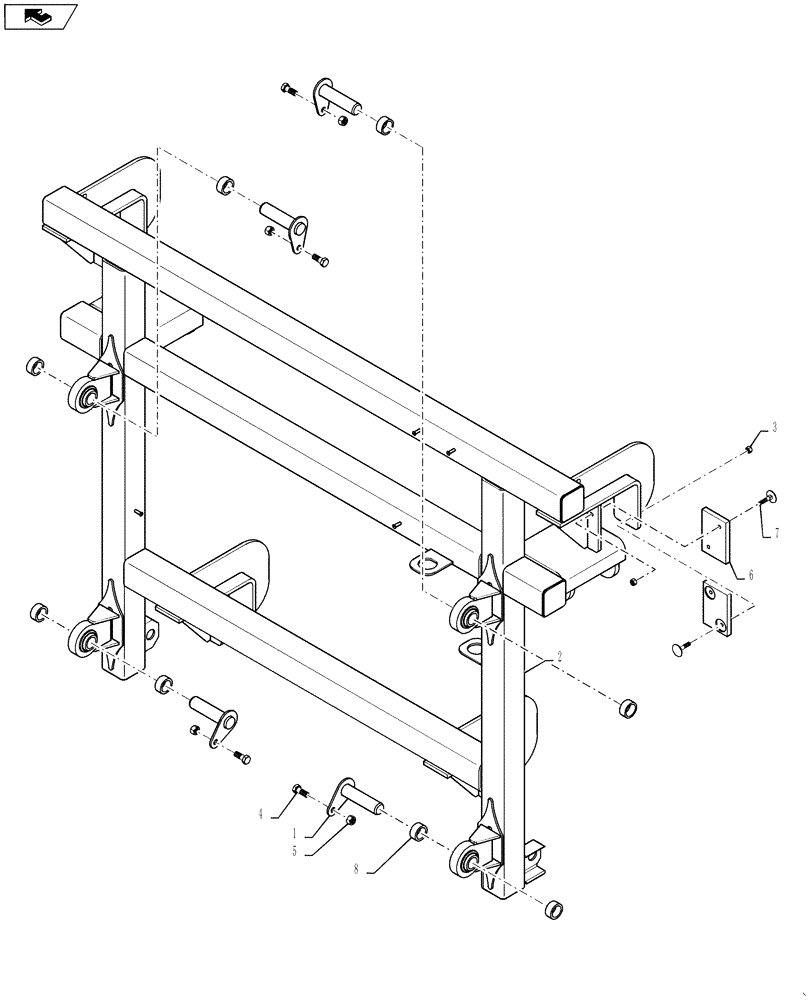

Запчасти Case IH 3230 (39.105.01) - CENTER SECTION MOUNTING (39) - FRAMES AND BALLASTING

1

87271475

PIN

Linkage

4шт.

2

47935874

MAST ASSEMBLY

Boom

1шт.

3

87343959

NUT,5/16" - 18, GR B, DOR

16шт.

4

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

4шт.

6

BN306777

PAD

BOOM SLIDE

8шт.

7

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

8

87271476

SPACER

PARALLEL LINK

8шт.
