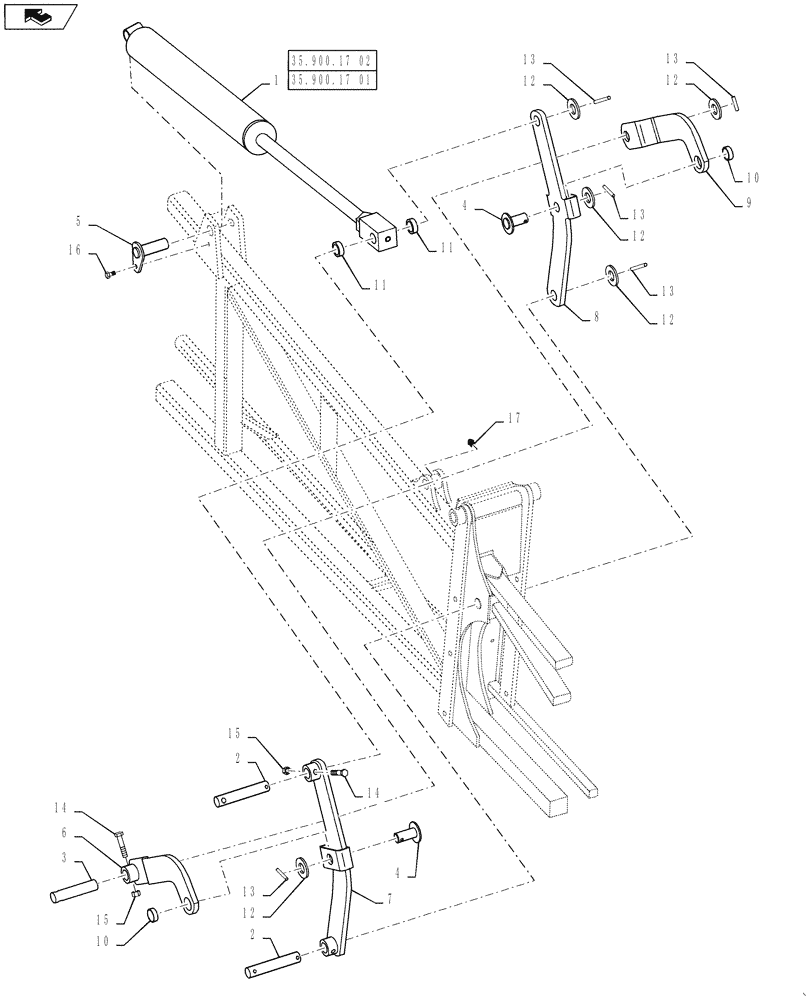

Запчасти Case IH 3230 (39.100.11) - HINGE GROUP, OUTER TIPS (39) - FRAMES AND BALLASTING

1

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

2.25 x 20.12 x 1.25, Complete SN YCT033226 And After

1шт.

Refer To 35.900.17(01)

1шт.

1

87266449

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2 x 20 x 1.25, Complete, BSN YCT033226

1шт.

Refer to 35.900.17(02)

1шт.

1

87266449R

REMAN-HYD CYLINDER

2 x 20 x 1.25, Complete, OUTER TIPS (11/08-)

1шт.

1

87266449C

CORE-HYD CYLINDER

Return Number

1шт.

2

BN307218

PIN,25.4mm OD x 143mm L

1 OD X 5.63 ETD150

2шт.

3

BN307217

PIN,25.4mm OD x 120.65mm L

1 OD X 4.63 ETD150

1шт.

4

BN310118

PIN

WELDMENT

2шт.

5

BN307223

PIN,25.4mm OD x 85.85mm L

WELDMENT, CYL

1шт.

6

BN305624

LINKAGE

WELDMENT, BAR

1шт.

7

BN305623

LINKAGE

WELDMENT, BAR

1шт.

8

BN305622

LINKAGE

WELDMENT, BAR

1шт.

9

BN311368

LINKAGE

FORMED LH

1шт.

10

BN69918

BUSHING

SPRING (CONNEX)

2шт.

11

BN311573

SPACER,26.16mm ID x 35.05mm OD x 10.41mm L

2шт.

12

BN310130

WASHER

10 GA 1.03" ID X 2.0

5шт.

13

BN52330

PIN, ROLL

1/4 X 1-3/4

5шт.

14

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

3шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

17

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.
