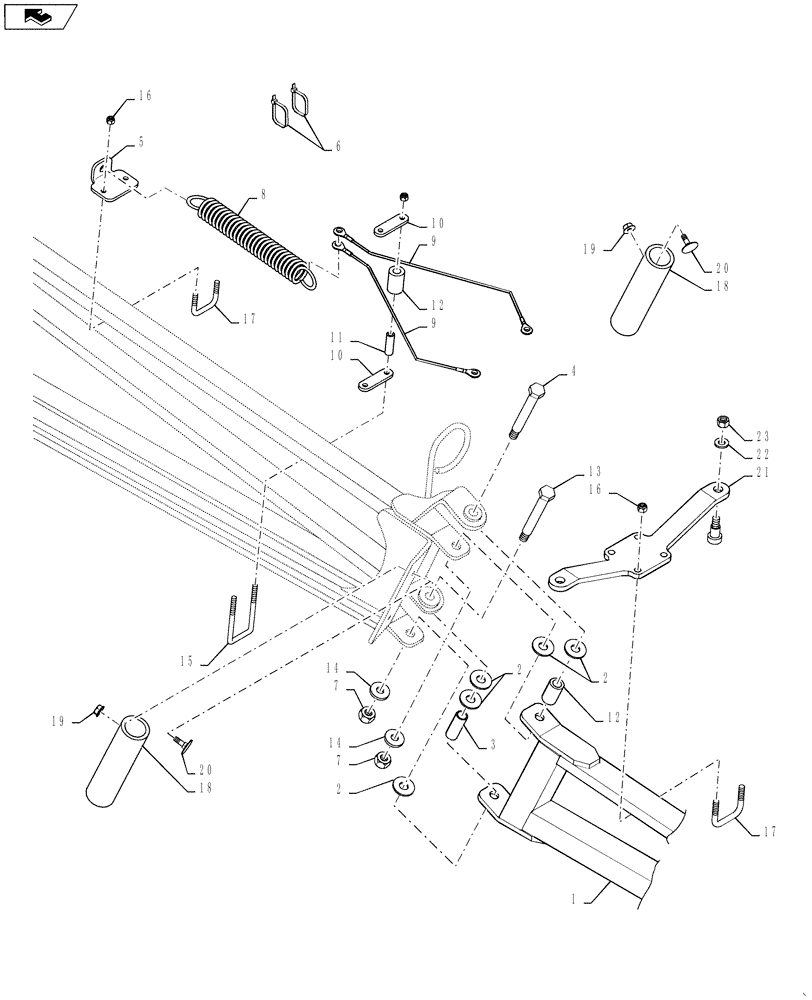

Запчасти Case IH 3230 (39.100.07) - BOOM, BREAKAWAY ASSEMBLY, 90 BEGINNING 11/2008 (39) - FRAMES AND BALLASTING

1

BN325289

FRAME

Boom, Breakaway

1шт.

2

87272614

WASHER,17.5mm ID x 38.1mm OD x 3.18mm Thk

38 od x 17 x 3.2, Nylon

6шт.

3

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

25 od x 16 id x 68 long, Nylatron

1шт.

4

84189224

BOLT

M16 X 110

1шт.

5

84217032

PLATE

BREAKAWAY

1шт.

6

BN570007

STRAP

Black Only .12-4.0 Band

2шт.

7

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

8

BN305410

SPRING

1.67 X 0.283 X12

1шт.

9

87271165

CABLE,713mm L

Breakaway, 28"

2шт.

10

BN308039

PLATE

Spacer

2шт.

11

BN310055

BUSHING,9.78mm ID x 16mm OD x 49.28mm L

, Serial Range: -YCT033105

2шт.

11

47361072

GUIDE

9.78mm ID x 16mm OD x 62mm L, Start Serial: YCT033106

2шт.

12

87265981

ROLLER,31.75mm OD x 48mm L

1.25" OD x .64" ID x 1.88" Long, UHMW, Serial Range: -YCT033105

3шт.

12

47361079

GUIDE

16mm ID x 31mm OD x 60.5mm L, Start Serial: YCT033106

2шт.

13

84189219

BOLT

M16 x 120

1шт.

14

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 MM HDN DOR

2шт.

15

BN305434

U-BOLT

BOLT "U" 3/8 x 2 x 4.5

1шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

17

BN68062

U-BOLT

BOLT "U" 3/8

3шт.

18

87706358

HOSE,38.10 mm ID

Bumper

2шт.

19

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

20

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

21

BN309505

ANGLE

WELD, BREAKAWAY

1шт.

22

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

2шт.

23

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.
