Запчасти Case IH 3230 (39.100.06) - 90’ BOOM BREAKAWAY ASSEMBLY (39) - FRAMES AND BALLASTING

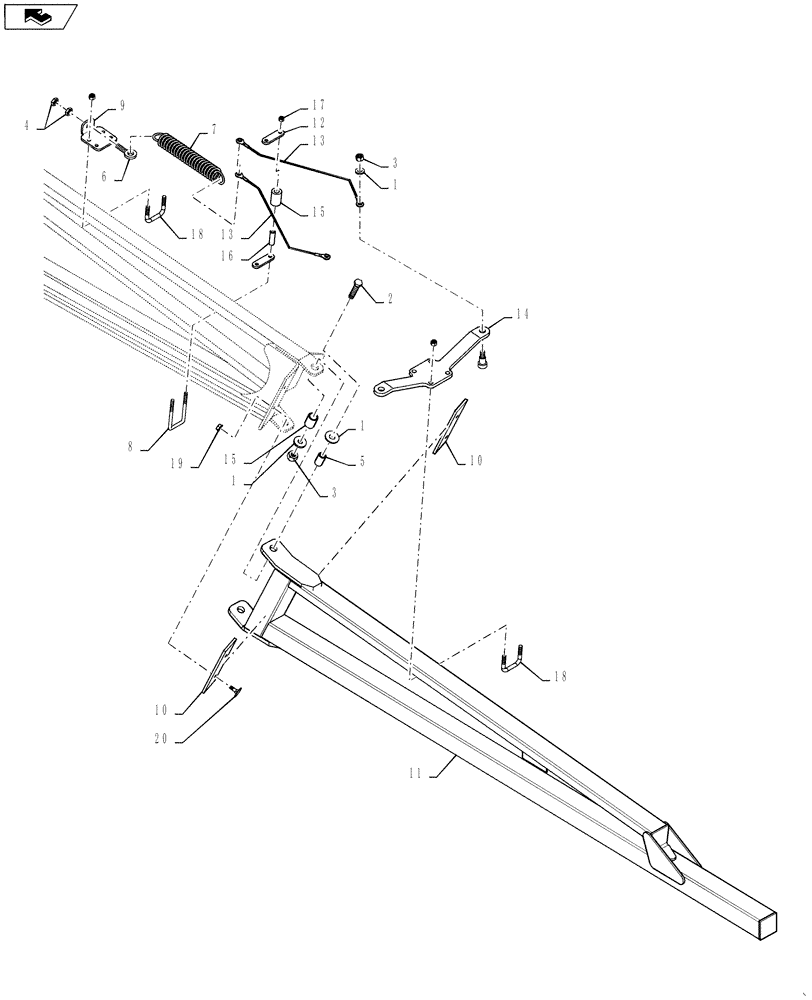

Схема запчастей Case IH 3230 - (39.100.06) - 90’ BOOM BREAKAWAY ASSEMBLY (39) - FRAMES AND BALLASTING
16
3
5
8
1
1
15
13
18
13
9
12
home
20
18
4
11
6
14
10
19
1
10
15
17
3
2
7

Артикул

Название

Примечание

Количество

1

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

2

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

3

100038

NUT,M12 x 1.75, Cl 8

3шт.

4

832-46416

NUT,M16 x 2, Cl 8

2шт.

5

BN304675

NUT

RND CONNECT, M12 X 40

1шт.

6

BN304678

EYEBOLT

BOLT, EYE M16 X 160

1шт.

7

BN305410

SPRING

1.67 X 0.283 X 12

1шт.

8

BN305434

U-BOLT

BOLT "U" 3/8 x 2 x 4.5

1шт.

9

BN311733

ANCHOR

BREAKAWAY

1шт.

10

BN312172

BUMPER

BREAKAWAY

2шт.

11

BN325289

FRAME

Boom, Breakaway

1шт.

12

BN308039

PLATE

Spacer

2шт.

13

87271165

CABLE,713mm L

Breakaway, 28"

2шт.

14

BN309505

ANGLE

WELDMENT, BREAKAWAY

1шт.

15

87265981

ROLLER,31.75mm OD x 48mm L

1.25" OD x .64" ID x 1.88" Long, UHMW

3шт.

16

BN310055

BUSHING,9.78mm ID x 16mm OD x 49.28mm L

2шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

18

BN68062

U-BOLT

BOLT "U" 3/8 SQ BND-2.06ID

4шт.

19

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

20

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

Выбрано товаров: 20
