(35.900.18[02]) - FOLD CYLINDER, FRONT LADDER, ASN YDT036000

Запчасти Case IH 3230 (35.900.18[02]) - FOLD CYLINDER, FRONT LADDER, ASN YDT036000 (35) - HYDRAULIC SYSTEMS

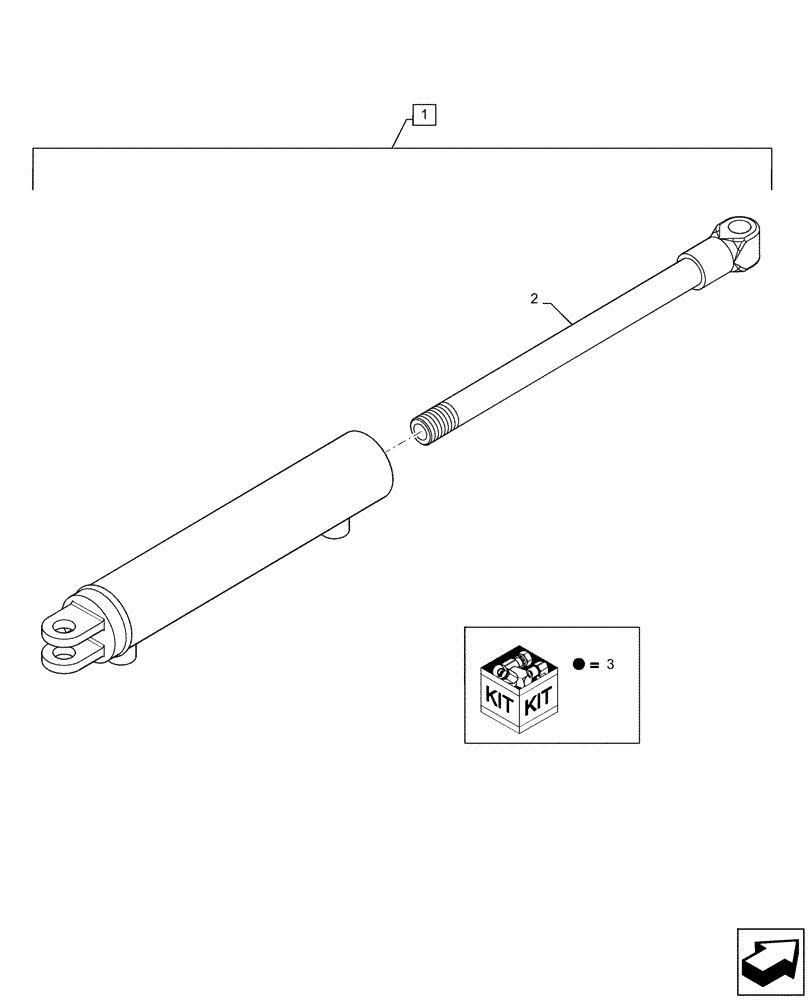

Схема запчастей Case IH 3230 - (35.900.18[02]) - FOLD CYLINDER, FRONT LADDER, ASN YDT036000 (35) - HYDRAULIC SYSTEMS
3
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84330410

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 152.4mm Stroke

38.1mm Bore x 152.4mm x 19.05mm Rod, Complete

1шт.

2

47445950

PISTON ROD

19.05mm Diameter

1шт.

3

47445956

SEAL KIT

For Ref. 1

1шт.

Выбрано товаров: 3
