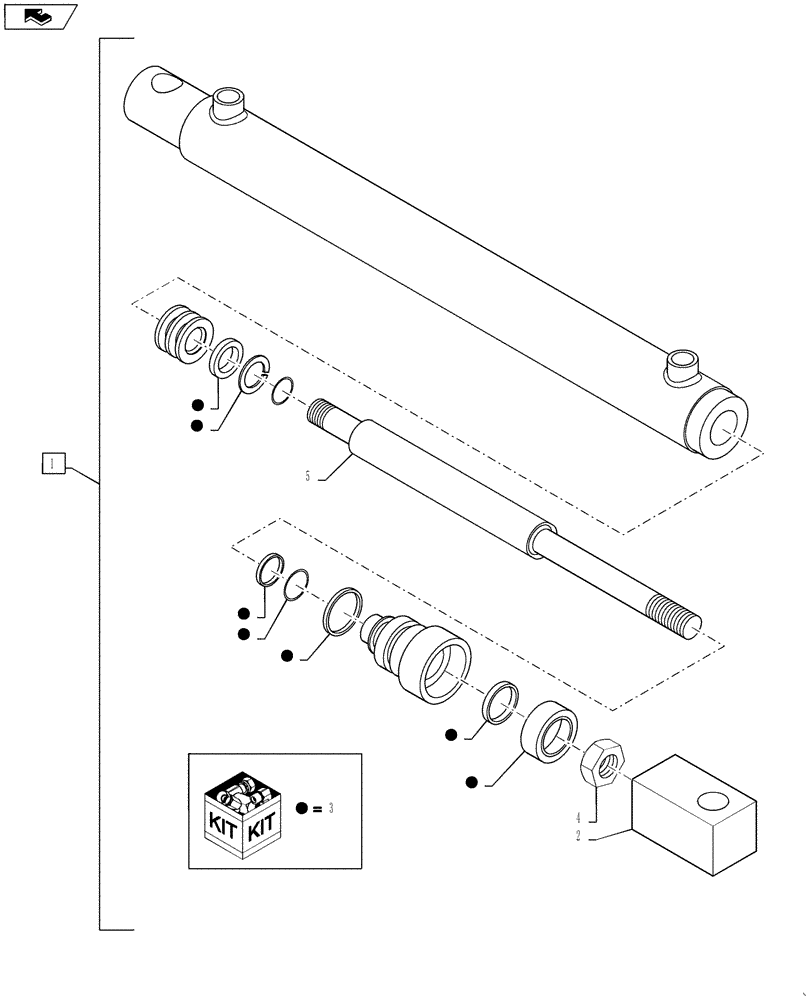

Запчасти Case IH 3230 (35.900.17) - FOLD CYLINDER, OUTER BOOM (35) - HYDRAULIC SYSTEMS

1

87266449

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2 x 20 x 1.25, Complete

1шт.

1

87266449R

REMAN-HYD CYLINDER

3230 PATRIOT SPRAYER, Hydraulic, 2 x 20 x 1.25, Complete, OUTER BOOM (7/09-)

1шт.

1

87266449C

CORE-HYD CYLINDER

Return Number

1шт.

2

87269923

ROD

End, Cylinder

1шт.

3

87267938

SEAL KIT

Kit, 1.25" X 2.00"

1шт.

4

BN2294429

JAM NUT

Jam 1 1/4"-12

1шт.

5

87267941

ROD

THREADED

1шт.
