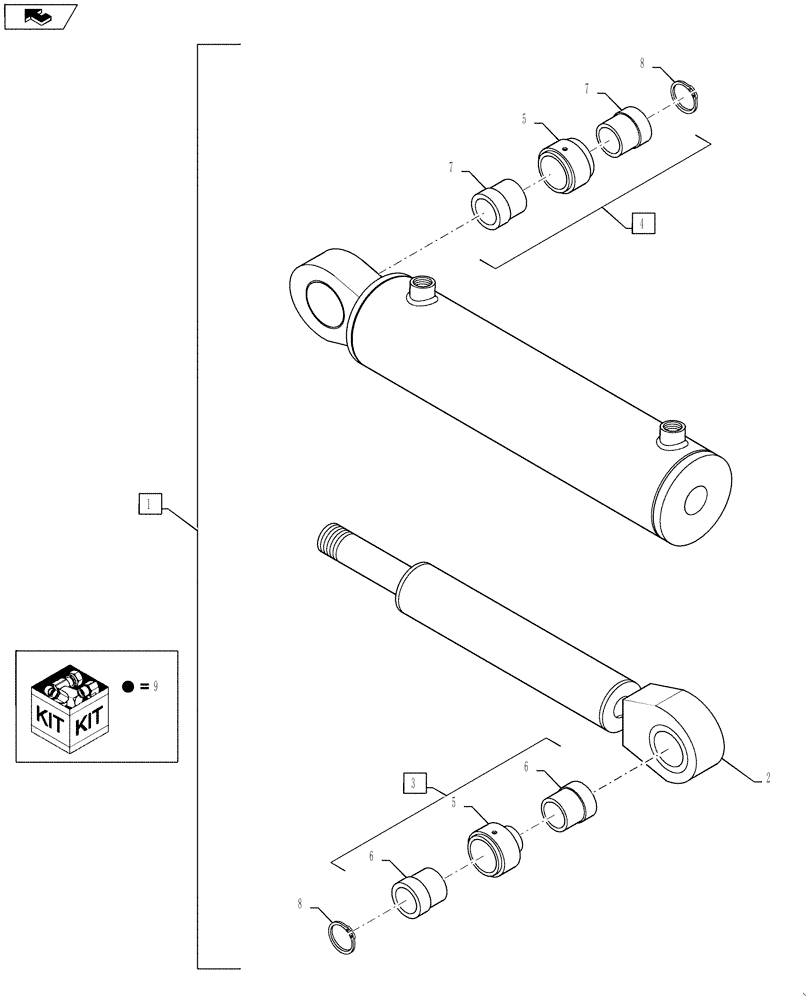

Запчасти Case IH 3230 (35.900.14) - FOLD CYLINDER, FRONT INNER BOOM (35) - HYDRAULIC SYSTEMS

1

87272676

HYDRAULIC CYLINDER

2.5 x 21.31 x 1.38

1шт.

1

84188920R

REMAN-HYD CYLINDER

3230 PATRIOT SPRAYER, 2.5 x 21.31 x 1.38, FRONT INNER BOOM (7/09-), Reman for New PN 87272676

1шт.

1

84188920C

CORE-HYD CYLINDER

Return Number

1шт.

1

84188920

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 525.53mm Stroke

Inner Boom Fold, Front, 2.50 x 20.69 x 1.38

1шт.

1

84188920R

REMAN-HYD CYLINDER

3230 PATRIOT SPRAYER, Inner Boom Fold, Front, 2.50 x 20.69 x 1.38 (7/09-)

1шт.

1

84188920C

CORE-HYD CYLINDER

Return Number

1шт.

2

87746974

ROD

Used On Cylinder 87272676

1шт.

2

84235165

ROD

Used On Cylinder 84188920

1шт.

3

87746972

SPHERICAL BEARING,20.09mm ID x 50.8mm OD x 51.82mm W

Rod End

1шт.

4

87746971

BUSHING,20.09mm ID x 50.8mm OD x 55.63mm W

Tube End

1шт.

5

87266307

SPHERICAL BEARING

Spherical

2шт.

6

87269921

SPACER

Rod End

2шт.

7

87269922

SPACER

Tube End

2шт.

8

100-21200

SNAP RING,2", Int, #200

2шт.

9

87746975

SEAL KIT

Inner Boom Fold Front Cylinder

1шт.
