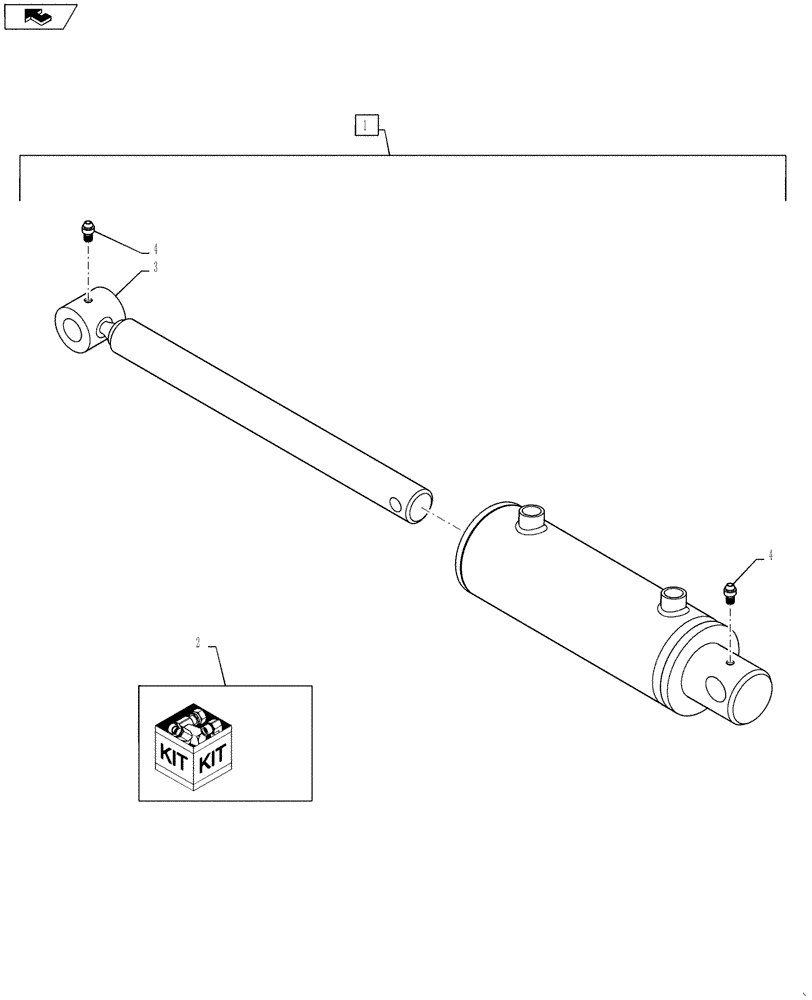

Запчасти Case IH 3230 (35.900.12) - LEVEL CYLINDER BOOM (35) - HYDRAULIC SYSTEMS

1

87266461

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 533.4mm Stroke

Hydraulic, 3.00 x 21 x 1.50, Incl 2 - 4

1шт.

1

87266461R

REMAN-HYD CYLINDER

3230 PATRIOT SPRAYER, Hydraulic (7/09-)

1шт.

1

87266461C

CORE-HYD CYLINDER

Return Number

1шт.

2

87270349

SEAL KIT

Seal Cylinder 87266461/235

1шт.

3

87270350

ROD

Cylinder #87266461

1шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.
