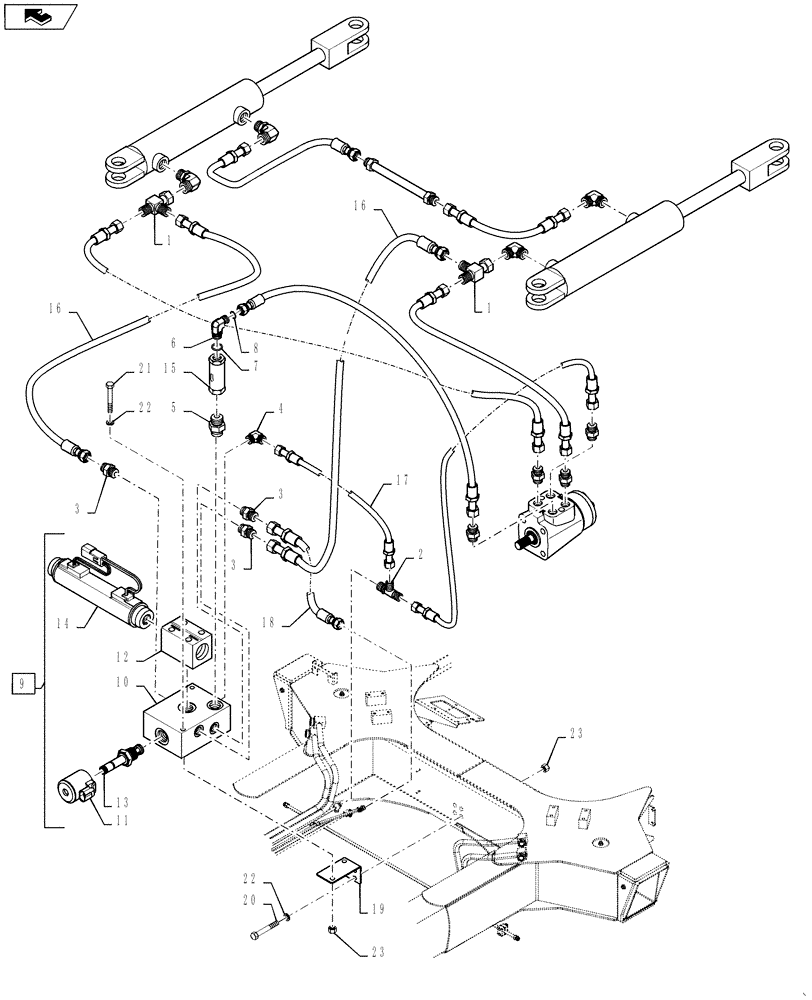

Запчасти Case IH 3230 (35.900.05) - HYDRAULIC GROUP, AUTO GUIDE (35) - HYDRAULIC SYSTEMS

1

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

2

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

1шт.

3

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

3шт.

4

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

5

BN322765

FITTING

8MB, 8MB, ADAPTER

1шт.

6

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

87609218

VALVE

AUTO GUIDE

1шт.

10

87726186

MANIFOLD VALVE

Block, Eaton

1шт.

11

87623908

COIL ASSY.

1шт.

12

87662364

HYDRAULIC VALVE

Directional

1шт.

13

87662363

HYDRAULIC VALVE

Solenoid

1шт.

14

84129314

VALVE

Proportional

1шт.

15

47626975

PRESSURE SWITCH

Auto Guide, Hydraulic Flow Control

1шт.

16

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

6 X 64"

2шт.

17

BN309746

HOSE

08 X 25

1шт.

18

BN314945

HOSE ASSY.

1шт.

19

87609209

MOUNTING PLATE

AUTO GUIDANCE

1шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

21

86980368

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

22

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

23

353308

NUT,M6 x 1.0, Cl 8

4шт.
