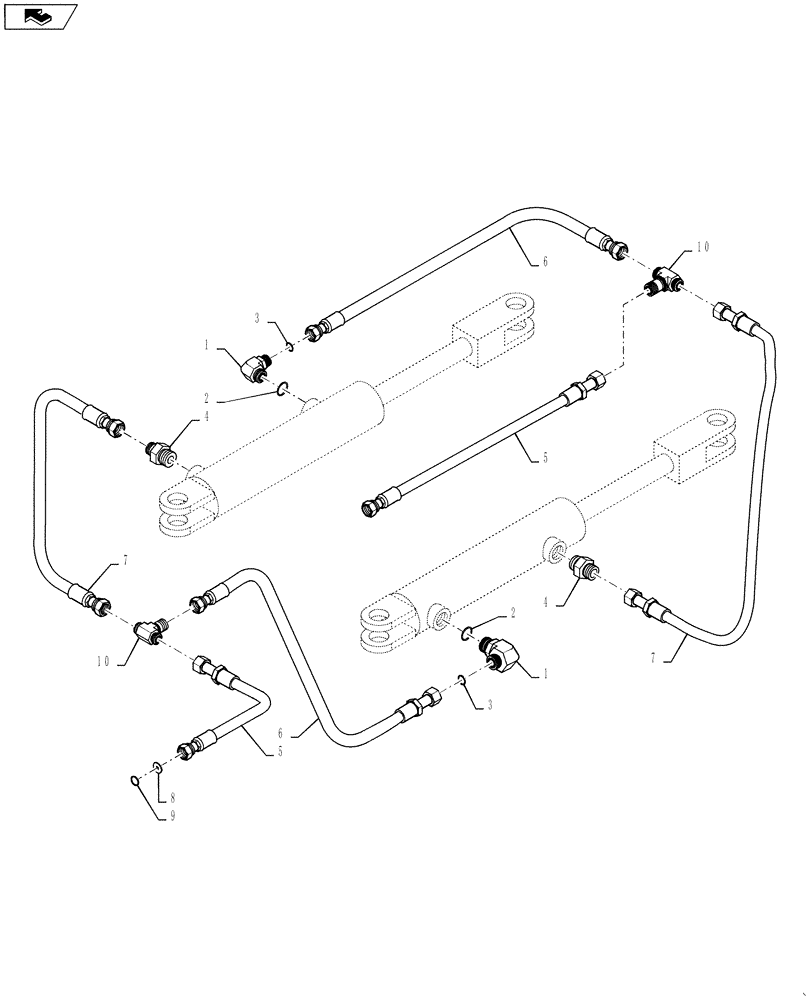

Запчасти Case IH 3230 (35.900.04) - HYDRAULIC GROUP, BOOM HITCH (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

5

BN313336

HOSE

6 X 30"

2шт.

6

86986082

HOSE

6 x 50"

2шт.

7

BN313337

HOSE

6 X 50"

2шт.

8

BN316688

ORIFICE

.140, 6, DISK

1шт.

9

BN305412

O-RING

FOR 6, FFOR

1шт.

10

BN302512

FITTING

6 MOR 6 MOR 6MOR

2шт.
