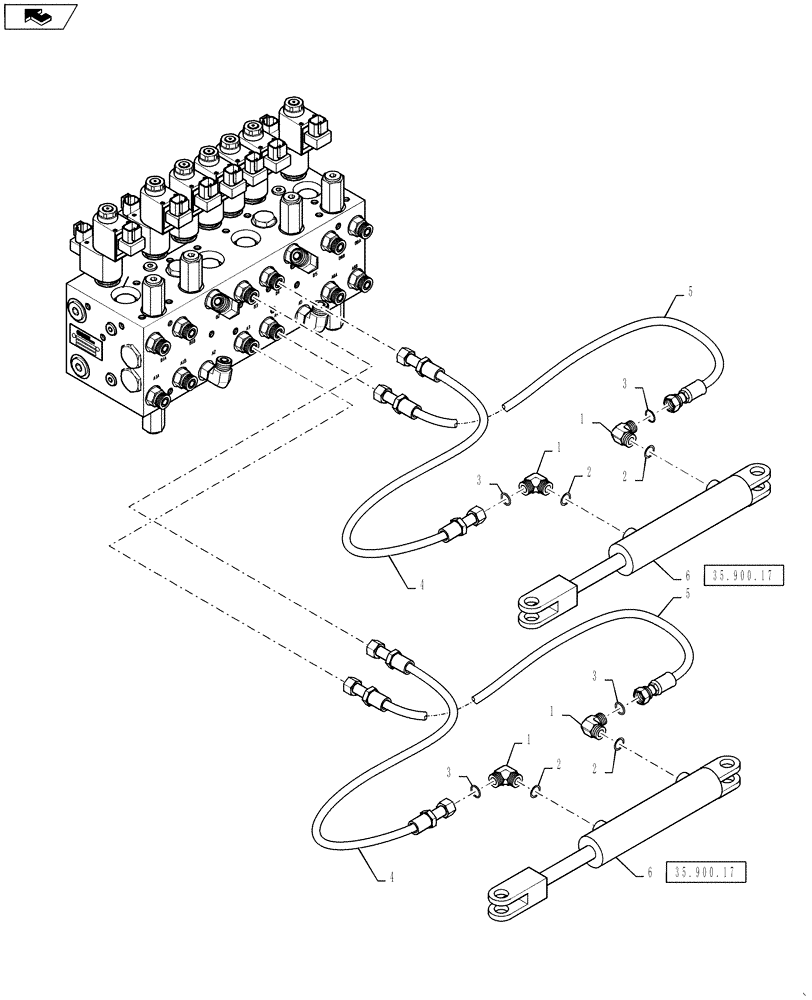

Запчасти Case IH 3230 (35.900.03) - HYDRAULIC GROUP, OUTER FOLD - NO CYLINDER (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

BN307879

HOSE ASSY.,6.35mm ID x 9855.2mm L

2шт.

5

BN307880

HOSE ASSY.,6.35mm ID x 9423.4mm L, SAE 100R17

2шт.

6

87266449

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2 x 20 x 1.25, Complete, BSN YCT033223

2шт.

6

87266449R

REMAN-HYD CYLINDER

3230 PATRIOT SPRAYER, Hydraulic, 2 x 20 x 1.25, Complete, Outer Fold (7/09-)

2шт.

6

87266449C

CORE-HYD CYLINDER

Return Number

2шт.

6

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

Hydraulic, 2.25 x 20 x 1.25, Complete, SN YCT033223 And After

2шт.
