(35.900.02) - HYDRAULIC GROUP, BOOM OUTER FOLD

Запчасти Case IH 3230 (35.900.02) - HYDRAULIC GROUP, BOOM OUTER FOLD (35) - HYDRAULIC SYSTEMS

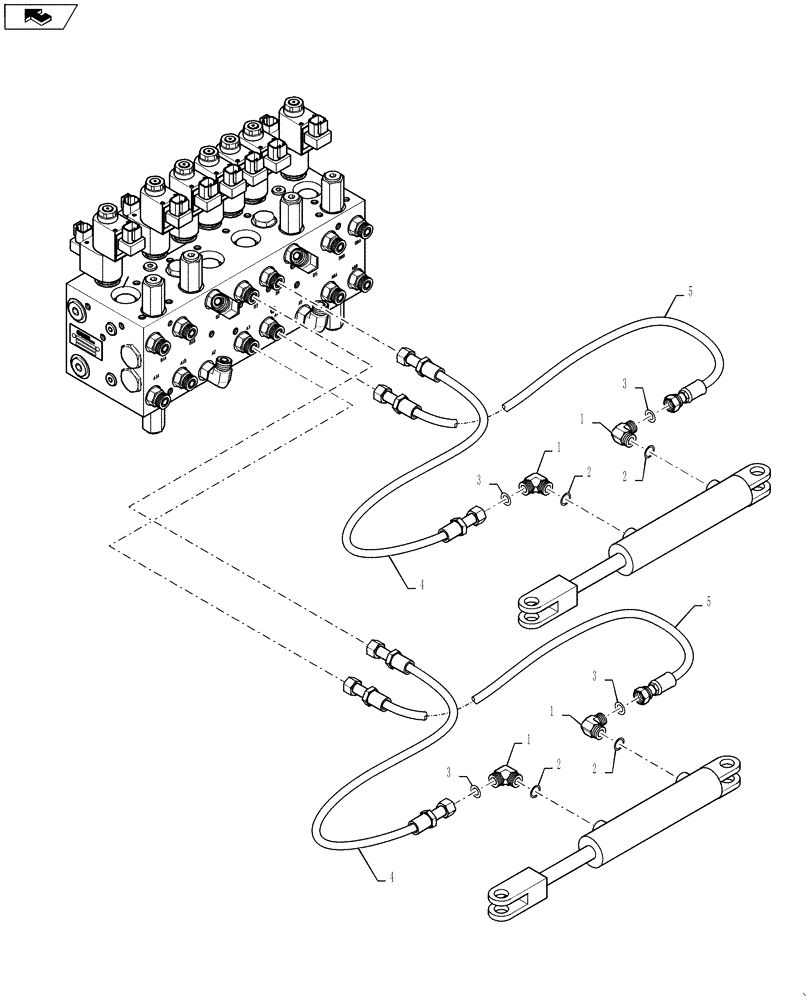

Схема запчастей Case IH 3230 - (35.900.02) - HYDRAULIC GROUP, BOOM OUTER FOLD (35) - HYDRAULIC SYSTEMS
3
5
4
1
1
2
1
3
3
2
3
2
home
2
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

87474625

HYDRAULIC HOSE

-6 X 9931MM

2шт.

4

BN307879

HOSE ASSY.,6.35mm ID x 9855.2mm L

2шт.

5

87474626

HYDRAULIC HOSE,9.53mm ID x 9423mm L, SAE 100R17

-6 X 9423MM

2шт.

5

BN307880

HOSE ASSY.,6.35mm ID x 9423.4mm L, SAE 100R17

2шт.
