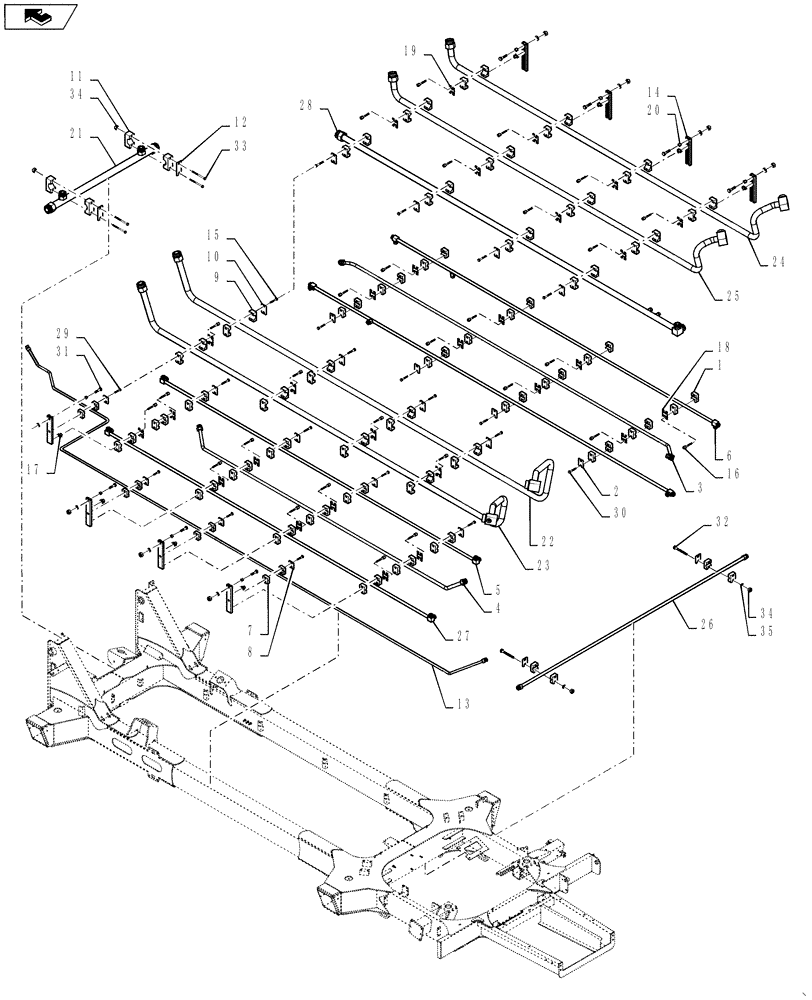

Запчасти Case IH 3230 (35.300.04[02]) - STEEL LINES GROUP (35) - HYDRAULIC SYSTEMS

1

BN29783

CLAMP

Single, 1/2" Tube

22шт.

2

BN29785

PLATE

Cover, Single, 1/2" Tube

12шт.

3

BN305996

TUBE

1шт.

4

87574765

HYD TUBE,.5" OD

Steering Return

1шт.

5

BN306003

TUBE

1шт.

6

BN306004

TUBE

2шт.

7

BN307078

CLAMP

3шт.

8

BN307079

PLATE

3шт.

9

BN307080

CLAMP

18шт.

10

BN307081

PLATE

7шт.

11

BN307082

CLAMP

2шт.

12

BN307083

PLATE

2шт.

13

BN309602

BRAKE LINE

1шт.

14

BN313247

RAIL

7шт.

15

BN305412

O-RING

1шт.

16

BN313261

BOLT

Stacking 1/4"-20 x 1.12

42шт.

17

BN313262

NUT

40шт.

18

BN313264

PLATE

10шт.

19

BN313265

PLATE

11шт.

20

BN316101

SPACER

7шт.

21

BN319659

TUBE

1шт.

22

87570217

HYD TUBE,1" OD

Drive Pressure "B"

1шт.

23

87570218

HYD TUBE,1" OD

Drive Pressure "A"

1шт.

24

87570219

HYD TUBE,1" OD

Drive Pressure "A"

1шт.

25

87570220

HYD TUBE,1" OD

Drive Pressure "B"

1шт.

26

BN324491

TUBE

1шт.

27

BN324574

TUBE

1шт.

28

BN325316

TUBE

1шт.

29

87342607

BOLT

Hex, 1/4"-20 x 1 1/4", G5

6шт.

30

87342608

BOLT

Hex, 1/4"-20 x 1 1/2", G5

20шт.

31

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

7шт.

32

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

4шт.

33

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

4шт.

34

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

15шт.

35

87342609

BOLT

Hex, 1/4"-20 x 1 3/4", G5

14шт.

36

BN305426

CAP

1шт.

37

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

38

9991588

NUT,M8 x 1.25, Cl 8

6шт.

39

NSS

NOT SOLD SEPARAT

Hoses,LH

1шт.

40

NSS

NOT SOLD SEPARAT

Hoses,RH

1шт.

41

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

42

BN305425

CAP

1шт.
