Запчасти Case IH 3230 (35.300.03) - PRESSURE COMP MANIFOLD (35) - HYDRAULIC SYSTEMS

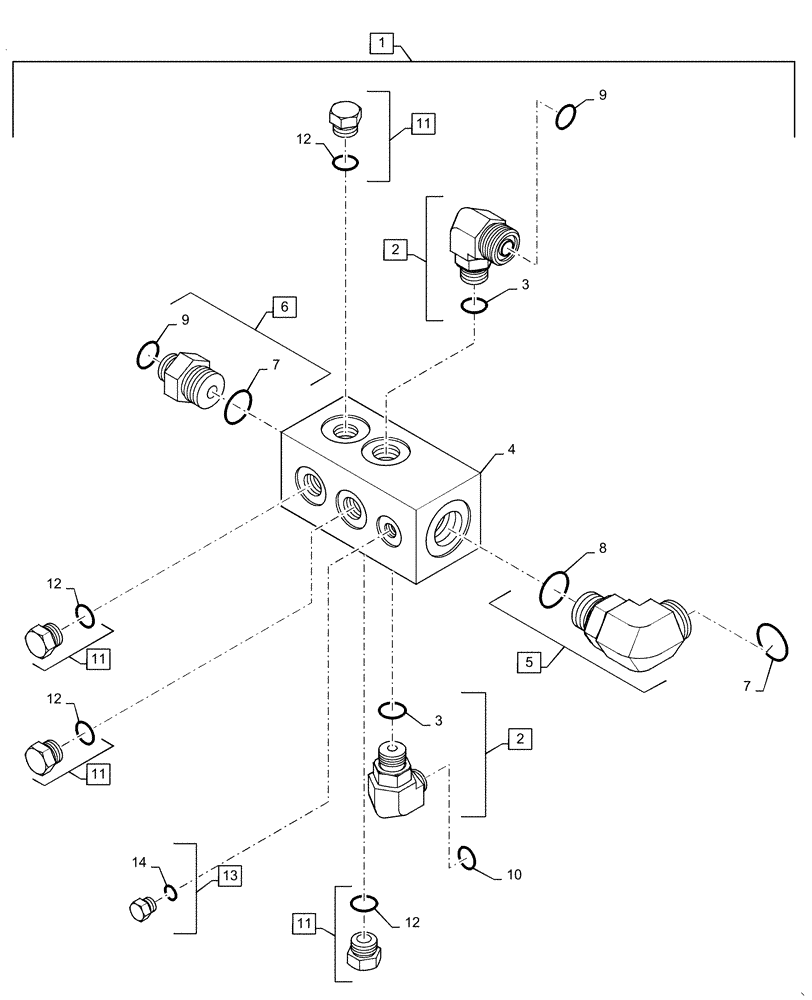

Схема запчастей Case IH 3230 - (35.300.03) - PRESSURE COMP MANIFOLD (35) - HYDRAULIC SYSTEMS
6
9
4
9
11
12
8
11
3
2
11
12
7
11
13
10
3
14
1
5
12
7
12
2

Артикул

Название

Примечание

Количество

1

BN323902

MANIFOLD

Pressure Compensating, Complete, Incl 2 - 14

1шт.

2

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg, Incl 3

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

BN326042

BODY

Aluminum

2шт.

5

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 8

1шт.

6

BN302652

FITTING

13/16" -16 OFRS x 1-1/16" -12 ORB, Incl 7, 9

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

BN446048

PLUG

-8, Ports P2, P4 - P6, Incl 12

4шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

BN446025

PLUG

-6, Port "G", Incl 14

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

Выбрано товаров: 14
