(35.116.02) - HYDRAULIC GROUP, 2WS

Запчасти Case IH 3230 (35.116.02) - HYDRAULIC GROUP, 2WS (35) - HYDRAULIC SYSTEMS

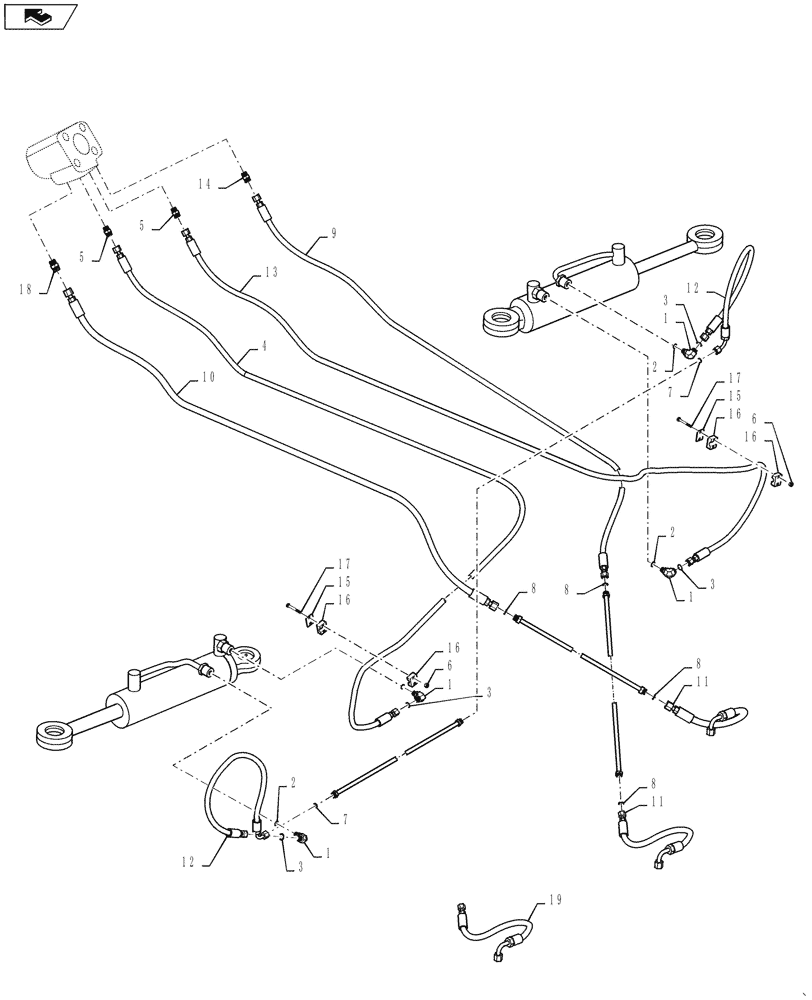

Схема запчастей Case IH 3230 - (35.116.02) - HYDRAULIC GROUP, 2WS (35) - HYDRAULIC SYSTEMS
5
1
11
2
17
8
7
7
13
5
8
12
14
16
16
1
3
16
8
18
2
1
19
15
4
1
17
15
16
3
11
9
3
3
6
6
home
8
12
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

87399572

HOSE

-6 X 135"

1шт.

5

BN302647

FITTING

6 MOR 8MB

2шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

7

BN305412

O-RING

FOR 6 FFOR

2шт.

8

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR 8 FFOR

4шт.

9

87271556

HOSE

-6 X 92"

1шт.

10

87272006

HOSE

-8 X 93"

1шт.

11

BN313282

HOSE

-8 X 15"

2шт.

12

BN307821

HOSE ASSY.

11/16 - 16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 33.5" Long, Steering Cylinder To Crossover Tube

2шт.

13

87399574

HOSE

-6 X 135"

1шт.

14

BN311751

CHECK VALVE

11/16" -16 OFRS x 3/4" -16 ORB

1шт.

15

BN29785

PLATE

Cover, Single, 1/2" Tube

2шт.

16

BN315164

CLAMP

PAIR, SNGL, 5/8" TUBE

2шт.

17

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

4шт.

18

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

1шт.
