(35.116.01) - CYLINDER, AXLE GROUP

Запчасти Case IH 3230 (35.116.01) - CYLINDER, AXLE GROUP (35) - HYDRAULIC SYSTEMS

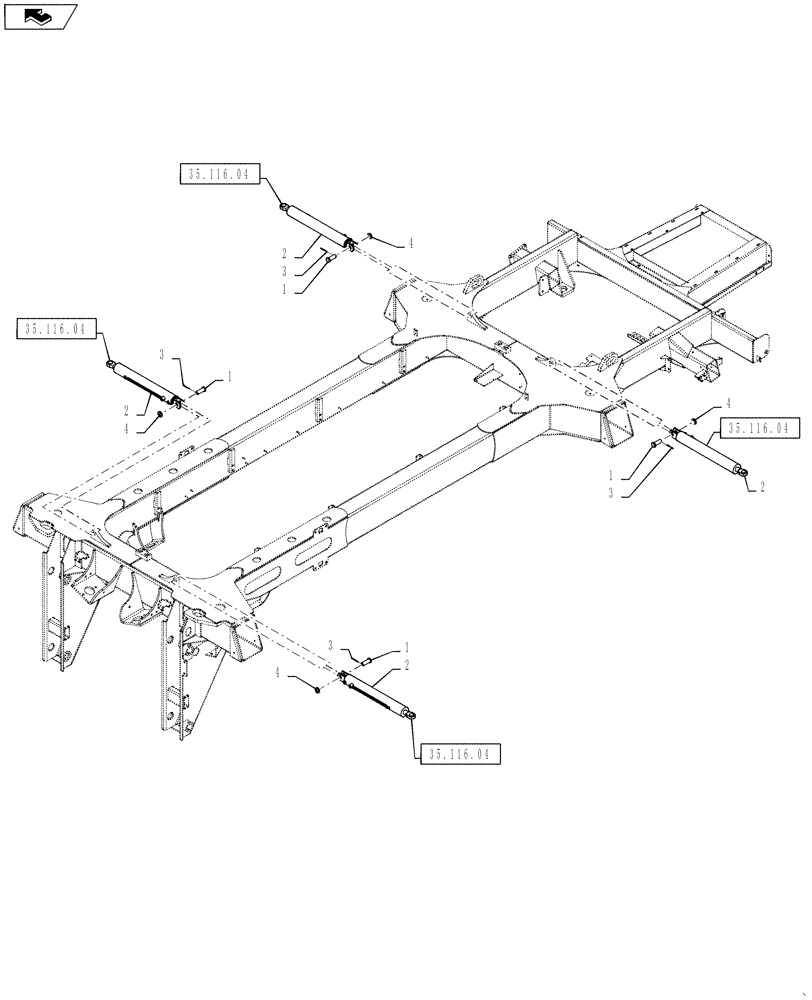

Схема запчастей Case IH 3230 - (35.116.01) - CYLINDER, AXLE GROUP (35) - HYDRAULIC SYSTEMS
1
2
4
4
home
1
3
2
35.116.04
35.116.04
35.116.04
35.116.04
3
3
2
4
2
1
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86632567

HEADED PIN,30.14mm OD x 66.55mm L

4шт.

2

87267921

CYLINDER,Double Acting, 31.75mm Rod, 469.9mm Stroke

hydraulic, 2.50 x 18.5 x 1.25

4шт.

Refer to 35.116.04

1шт.

3

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

4шт.

4

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.
