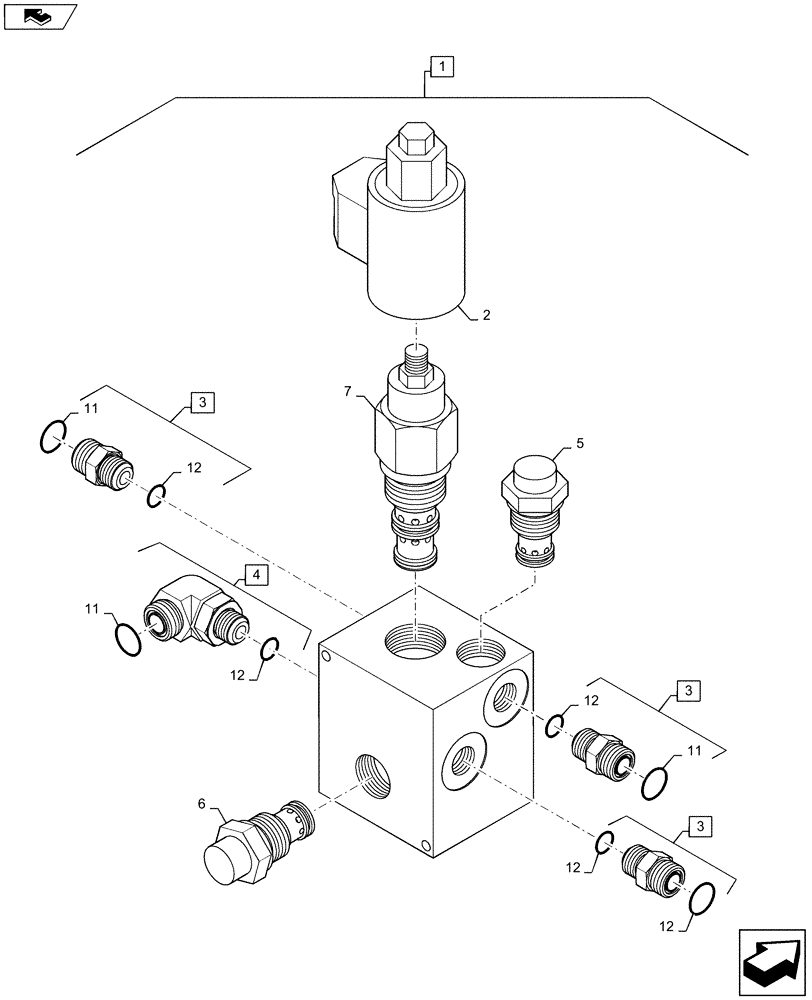

Запчасти Case IH 3230 (35.114.06[02]) - PRODUCT PUMP VALVE BREAKDOWN, SN YBT031316 AND AFTER (35) - HYDRAULIC SYSTEMS

1

84333717

VALVE

Product Pump, Includes 2 - 10

1шт.

2

84423410

KIT

Control Valve Coil

1шт.

3

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

3шт.

4

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

5

84401228

CHECK VALVE

Poppet

1шт.

6

84401227

VALVE POPPET

Relief Valve, 3000 PSI

1шт.

7

84401225

FLOW CONTROL VALVE

Proportional, Cartride Only

1шт.

8

84401250

SEAL KIT

Check Valve, Used on Ref 5

1шт.

9

84401248

SEAL

Relief Valve, Used on Ref 6

1шт.

10

84401247

SEAL KIT

Flow Control Valve, Used on Ref 7

1шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB Ends

4шт.
