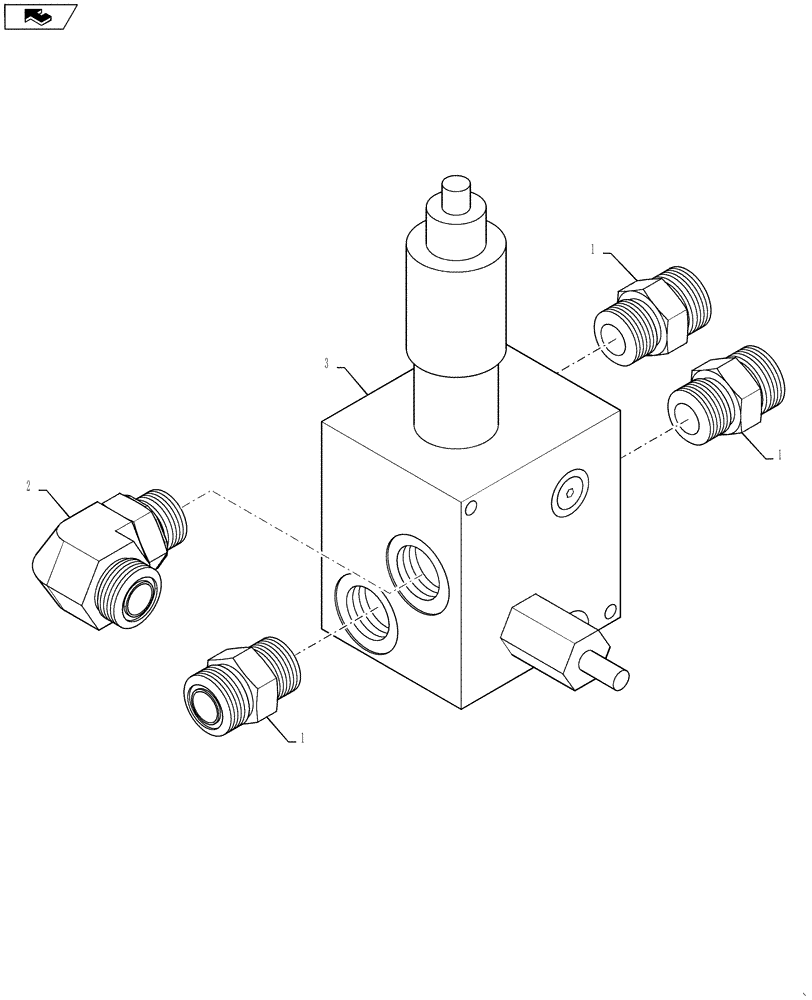

Запчасти Case IH 3230 (35.114.06[01]) - VALVE, PRODUCT CONTROL, BSN YBT031316 (35) - HYDRAULIC SYSTEMS

1

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

3шт.

2

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

3

342100A1

VALVE

Product, With Fittings

1шт.

3a

BN306273

VALVE, PRESSURE RELI

EF 2500 PSI

1шт.

Service Parts for Ref. 3

1шт.

3b

BN314658

CHECK VALVE

1шт.

Service Parts for Ref. 3

1шт.

3c

86986094

SOLENOID

Valve, Command

1шт.

Service Parts for Ref. 3

1шт.

3d

87270915

REPAIR KIT

Coil, 12 VDC Deutsch

1шт.

Associated Part of Solenoid Valve, P/N 86986094

1шт.

3e

87270922

CARTRIDGE

PWM EHPFD 20 gpm

1шт.

Associated Part of Solenoid Valve, P/N 86986094

1шт.
