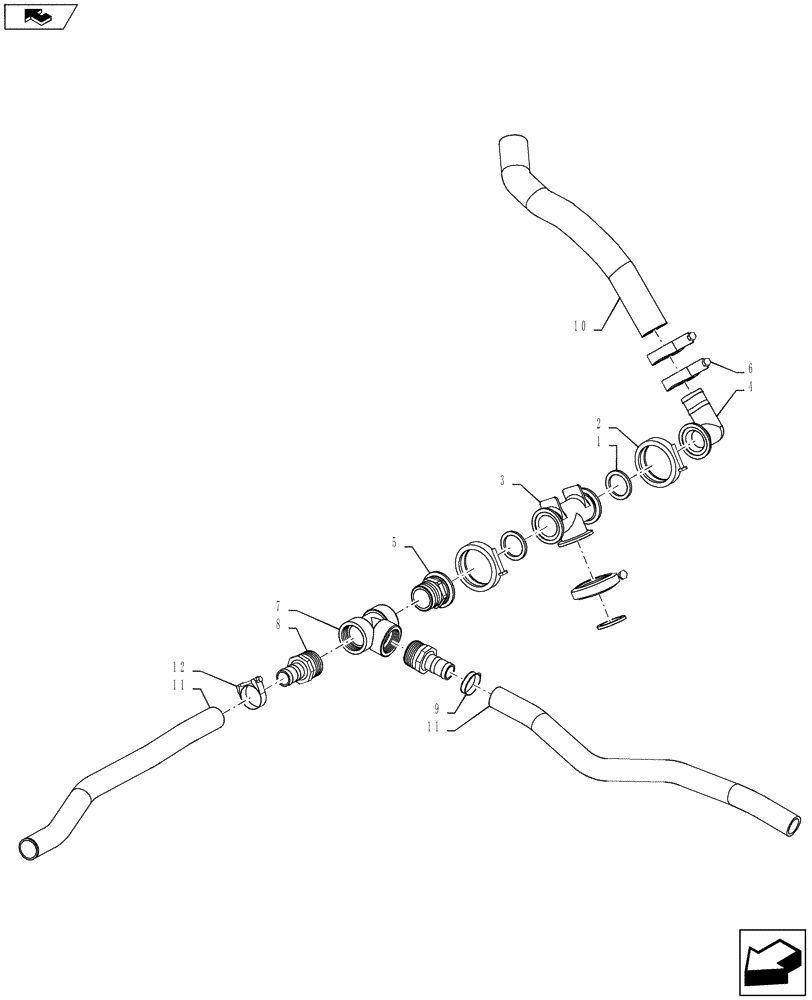

Запчасти Case IH 3230 (35.104.03) - PUMP PLUMBING (35) - HYDRAULIC SYSTEMS

1

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

3шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

3шт.

3

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2" Full Port Flange

1шт.

4

BN324065

FITTING,2" Full Port Flange x 2" 90 Degree Hose Barb Elbow

2" Full Port Flange X 2" HS

1шт.

5

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

6

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

7

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

8

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

2шт.

9

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

10

BN29564

HOSE

2" Bulk EPDM Suction

2.5шт.

11

BN53842

HOSE,38.10 mm ID Bulk

Discharge

7.17шт.

12

BN53811

CLAMP

2" ID, T-bolt

2шт.
