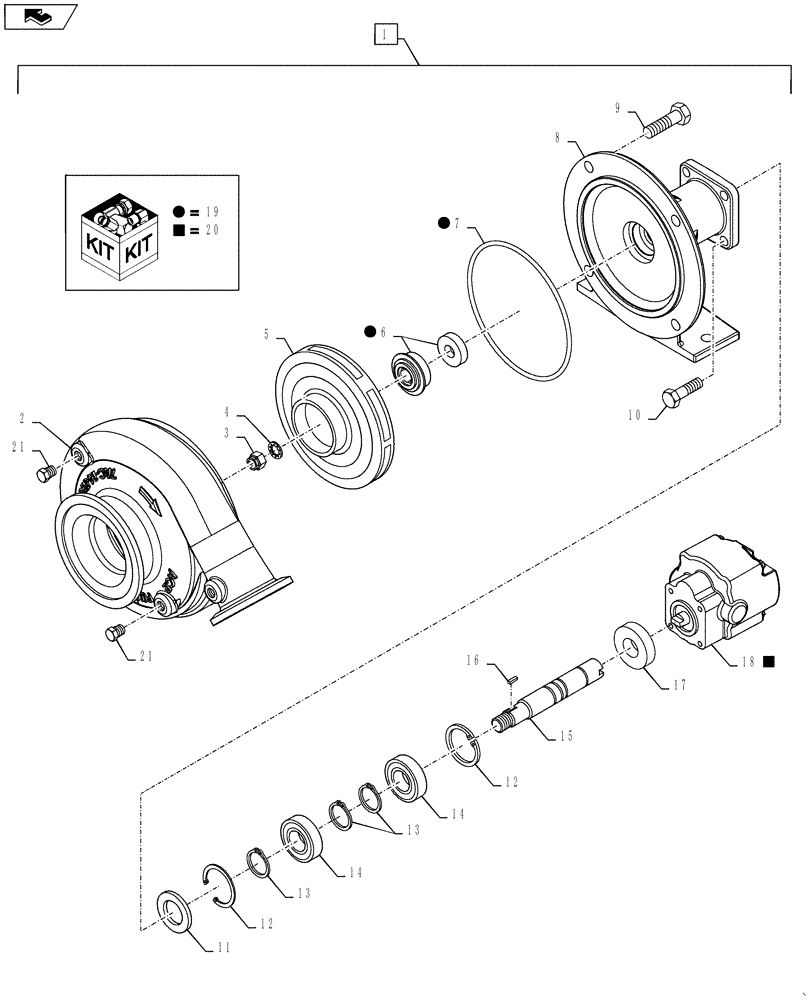

Запчасти Case IH 3230 (35.104.02[03]) - PUMP PRODUCT, ACE, ASN YAT028001 (35) - HYDRAULIC SYSTEMS

1

84319987

PUMP,11.49 CC

Product, Incl 1 - 18 & 21, Start Serial: YAT028002

1шт.

84319987R

REMAN-WATER PUMP

3230 Start Serial : YAT028002, ASN YAT028001 (7/09-)

1шт.

84319987C

CORE-WATER PUMP

Return Number

1шт.

2

87598189

CASTING

VOLUTE

1шт.

3

87598197

NUT

3/8 NF, SS

1шт.

4

BN325952

WASHER

3/8 STAR, SS

1шт.

5

BN325954

IMPELLER

Thermoplastic

1шт.

6

84345092

SEAL

Silicon Carbide

1шт.

7

BN325955

O-RING

O-Ring, Body

1шт.

8

84345096

FRAME

Mounting, Pump

1шт.

9

87598199

SCREW,3/8" x 3/4"

3/8 NC X 3/4 HEAD

4шт.

10

87608631

SCREW,Hex, 5/16" x 3"

Cap, 5/16" NC X 3/4" Hex Head

4шт.

11

BN325959

SLINGER

1шт.

12

BN325960

SNAP RING

Internal

2шт.

13

84345098

SNAP RING

External

3шт.

14

84345099

BEARING ASSY

Sealed

2шт.

15

84345100

SHAFT

Extended Keyway, Tang, SS

1шт.

16

BN325964

KEY

1/8" X 1/8" X 13/16", Extended Keyway

1шт.

17

84345102

SPACER

Seal Support

1шт.

18

87598211

HYDRAULIC MOTOR,11.49 CC

18 GPM, #12 End Ports, #6 Case Drain

1шт.

87598211R

REMAN-HYD MOTOR

3230 ASN YAT028001 (7/09-)

1шт.

87598211C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

19

84345104

REPAIR KIT

W/ Silicon Carbide Shaft Seal

1шт.

Includes Ref. 6 & 7

1шт.

20

87269847

REPAIR KIT

300 Series Hydraulic Motor

1шт.

21

87598194

PIPE PLUG

PLUG

4шт.
