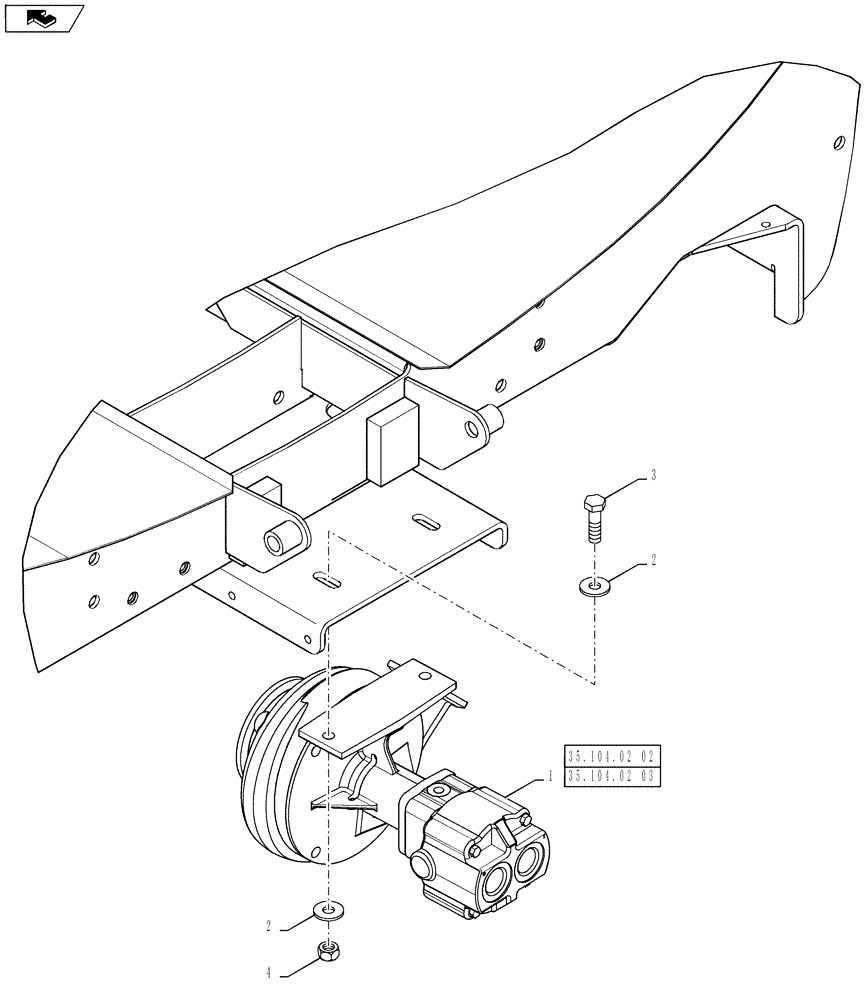

Запчасти Case IH 3230 (35.104.02[01]) - PUMP MOUNTING, ACE PUMP (35) - HYDRAULIC SYSTEMS

1

87269948

PUMP

Product, FMCSC-200F-HYD-, If Used, Serial Range: -YAT028001

1шт.

84319987R

REMAN-WATER PUMP

3230 Serial Range : YAT028001 (7/09-) Reman For New P/N 87269948

1шт.

84319987C

CORE-WATER PUMP

Return Number

1шт.

Refer To 35.104.02(02)

1шт.

1

84319987

PUMP,11.49 CC

Product, If Used, Start Serial: YAT028002

1шт.

84319987R

REMAN-WATER PUMP

3230 Start Serial : YAT028002 (7/09-)

1шт.

84319987C

CORE-WATER PUMP

Return Number

1шт.

Refer To 35.104.02(03)

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

3

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
