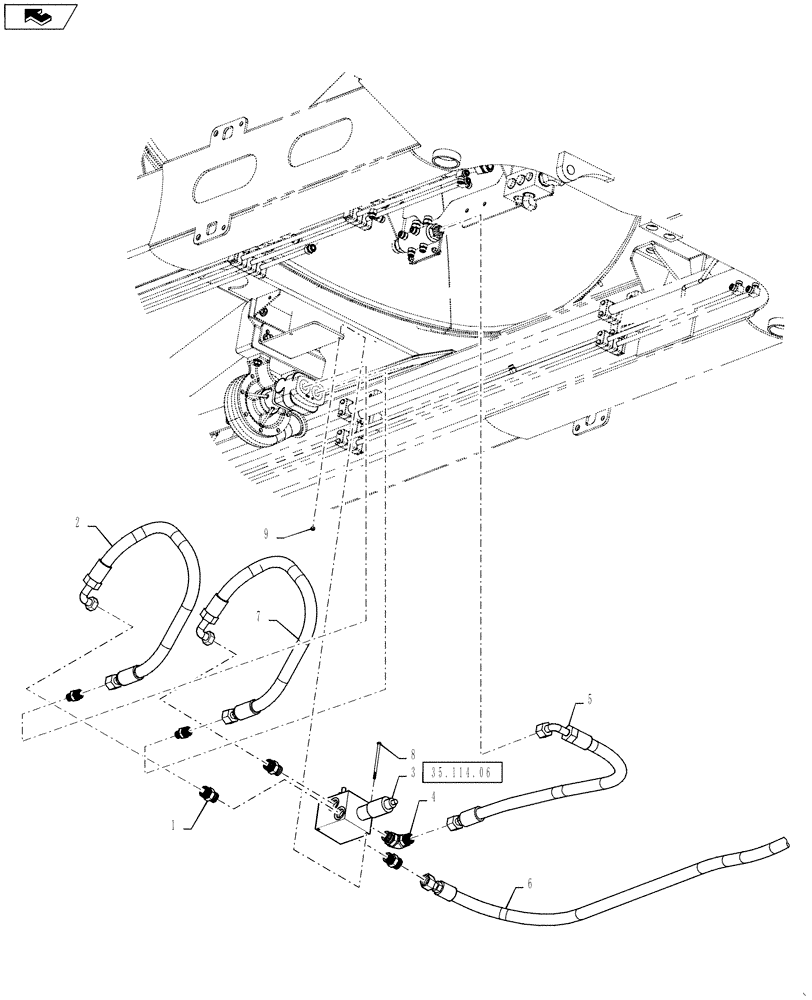

Запчасти Case IH 3230 (35.104.01) - PRODUCT PUMP HYDRAULIC GROUP (35) - HYDRAULIC SYSTEMS

1

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

2шт.

2

86986096

HOSE,19.05mm ID x 736.6mm L, SAE 100R17

12 x 29"

2шт.

3

342100A1

VALVE

Product, With Fittings

1шт.

4

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

1шт.

5

BN322267

HOSE

4 X 67"

1шт.

6

87271550

HOSE

12 X 45

1шт.

7

87272444

HOSE

12 X 138

1шт.

8

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

2шт.

9

353308

NUT,M6 x 1.0, Cl 8

2шт.
