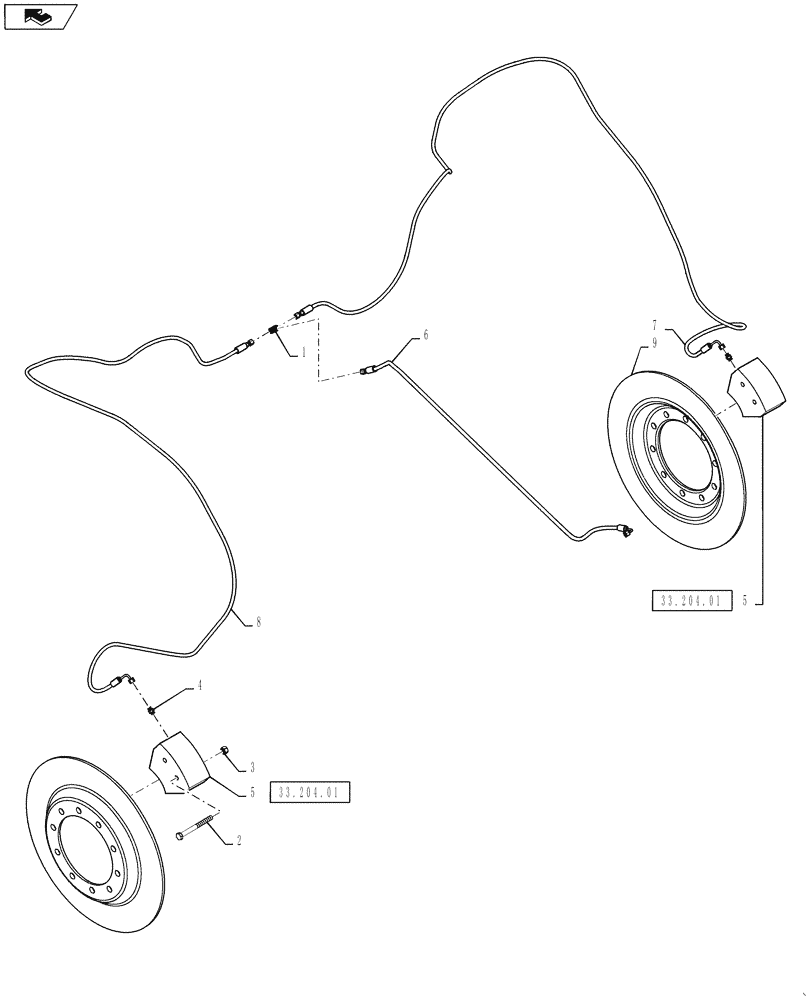

Запчасти Case IH 3230 (33.204.02[01]) - BRAKE GROUP, DYNAMIC, BSN YBT029141 (33) - BRAKES & CONTROLS

1

BN302511

FITTING

4 MOR 4 MOR 4 MOR

1шт.

2

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

M16 x 160 CL10.9 DOR

4шт.

Not Shown

1шт.

For securing the calipers to the casting

1шт.

3

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

Not Shown

1шт.

For securing the calipers to the casting

1шт.

4

BN306947

ADAPTER

4MB 4MF FOR LONG

2шт.

5

BN307717

PACKAGE

Brake Caliper Assembly

2шт.

Refer to 33.204.01

1шт.

6

BN307827

HOSE ASSY.

1шт.

7

BN307829

HOSE ASSY.

1шт.

8

BN324552

HOSE ASSY.

4 X 140"

1шт.

9

BN301666

BRAKE DISC

27.875" Dia.

2шт.
