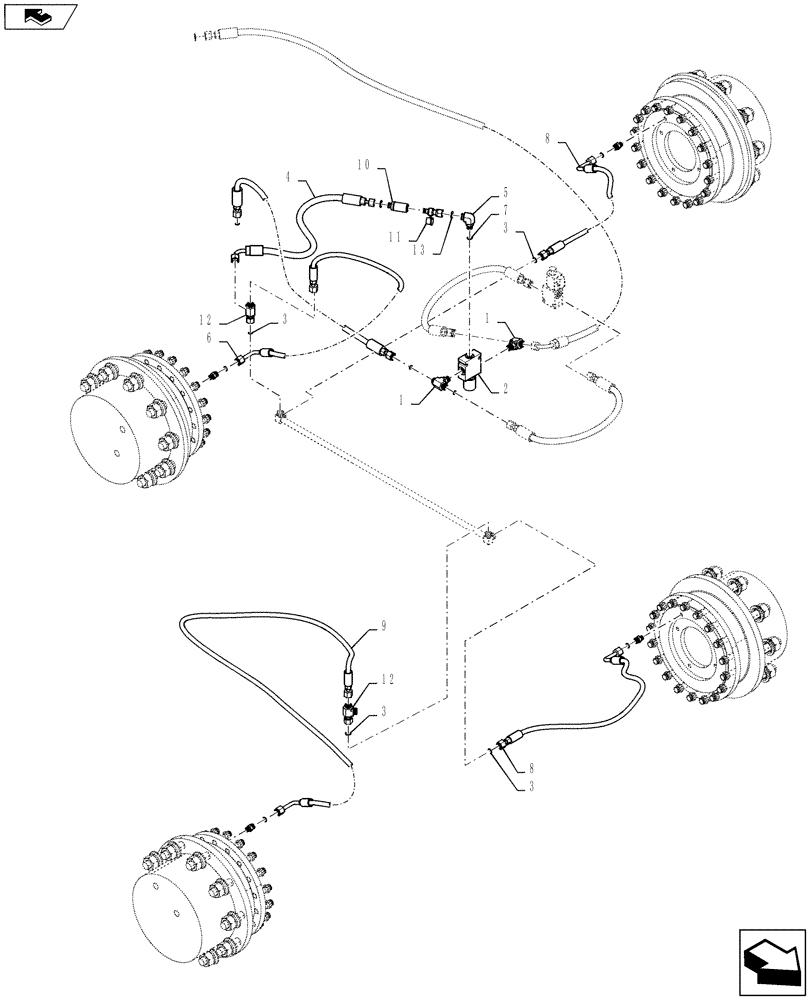

Запчасти Case IH 3230 (33.110.01) - PARK BRAKE GROUP (33) - BRAKES & CONTROLS

1

BN302536

FITTING

6 MOR 6 MBX 6 MOR, PLATE PER

2шт.

2

87271739

VALVE SECTION

Brake, With Deutsch

1шт.

87269976

SEAL KIT

For Ref 2

1шт.

431548A1

VALVE

Cartridge, For Ref 2

1шт.

87582524

COIL

For ref 2

1шт.

3

BN305412

O-RING

FOR 6 FFOR

4шт.

4

NSS

NOT SOLD SEPARAT

6 X 20

1шт.

5

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

1шт.

6

87529578

HOSE

4 X 146

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

87574769

HOSE

4 X 170

2шт.

9

87529577

HOSE

4 X 140

1шт.

10

BN307992

COUPLING

Diagnostric Coupler 4MNPT

1шт.

11

BN307993

NIPPLE, LUBE

Diagnostic Nipple 6FFOR

1шт.

12

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
