(29.212.02) - HYDRAULIC DRIVE LOOP GROUP

Запчасти Case IH 3230 (29.212.02) - HYDRAULIC DRIVE LOOP GROUP (29) - HYDROSTATIC DRIVE

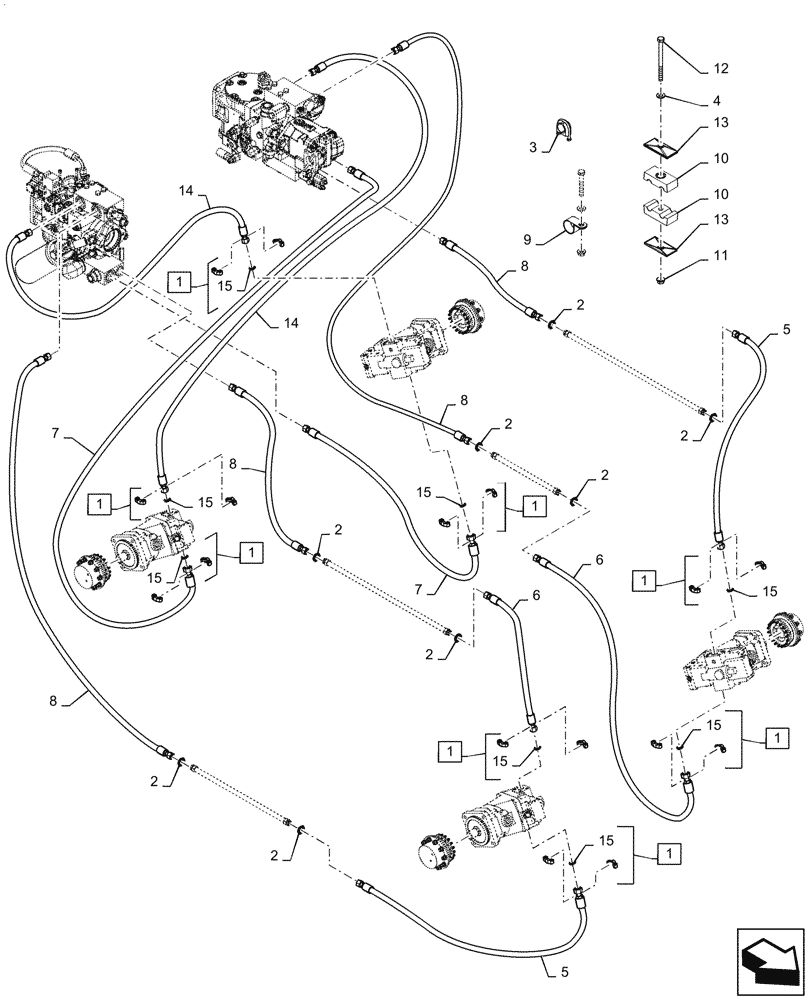

Схема запчастей Case IH 3230 - (29.212.02) - HYDRAULIC DRIVE LOOP GROUP (29) - HYDROSTATIC DRIVE
3
2
2
1
8
1
10
1
15
8
7
14
8
15
1
1
2
7
13
2
2
1
8
15
13
6
10
5
2
15
1
12
9
14
15
11
4
5
15
1
2
2
15
15
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270171

REPAIR KIT

3/4" Code 62, Incl 15

8шт.

2

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.

3

BN57235

CLAMP

Assy, 1"

16шт.

4

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

16шт.

5

87270912

HOSE,19.05mm ID x 2946.4mm L

2шт.

6

87270913

HOSE,19.05mm ID x 3175mm L

2шт.

7

87477280

HYDRAULIC HOSE,19mm ID x 5258mm L, SAE 100R13

2шт.

8

87516936

HOSE,19.05mm ID x 1574.8mm L, SAE 100R13

4шт.

9

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

4шт.

10

BN309849

CLAMP

Dual, 1.25 TUBE

6шт.

11

9991588

NUT,M8 x 1.25, Cl 8

6шт.

12

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

6шт.

13

1324469C1

PLATE

Hose Clamp

6шт.

14

87607922

HOSE,19.05mm ID x 4953mm L

2шт.

15

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

8шт.
