Запчасти Case IH 3230 (29.200.01) - PUMP DRIVE GROUP (29) - HYDROSTATIC DRIVE

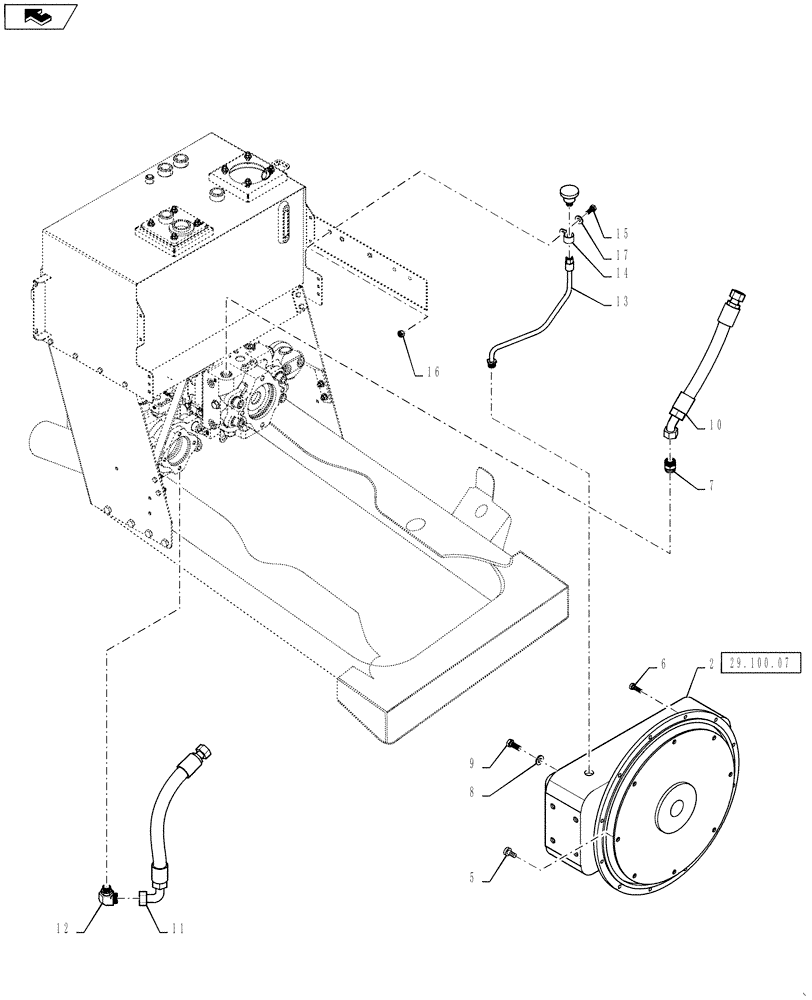

Схема запчастей Case IH 3230 - (29.200.01) - PUMP DRIVE GROUP (29) - HYDROSTATIC DRIVE
17
11
2
6
12
5
14
9
home
29.100.07
13
16
15
10
7
8

Артикул

Название

Примечание

Количество

1

ZPX27136

SEALANT, THREAD

Adhesive, 271

1шт.

2

87270172

PUMP

drive 2, 1.40 UP SPL

1шт.

Refer to 29.100.07

1шт.

3

NSS

NOT SOLD SEPARAT

SYNTHETIC SHC629

3шт.

4

BN55089

GREASE

Grease, 14 oz tube

1шт.

5

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

8шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

12шт.

7

BN57223

FITTING

16 MOR-16 MB

1шт.

8

87529241

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

.640 X 1.047 X .13

4шт.

9

87342850

BOLT

Hex, 5/8"-11 x 2 1/2", G5

4шт.

11

87271198

HOSE

16 X 18.5

1шт.

12

87272443

HOSE

16 X 24.25

1шт.

13

BN302424

ELBOW

16MOR-16MBX90LL

11шт.

14

87592184

HOSE

08 x 30"

1шт.

15

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

17

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

Выбрано товаров: 18
