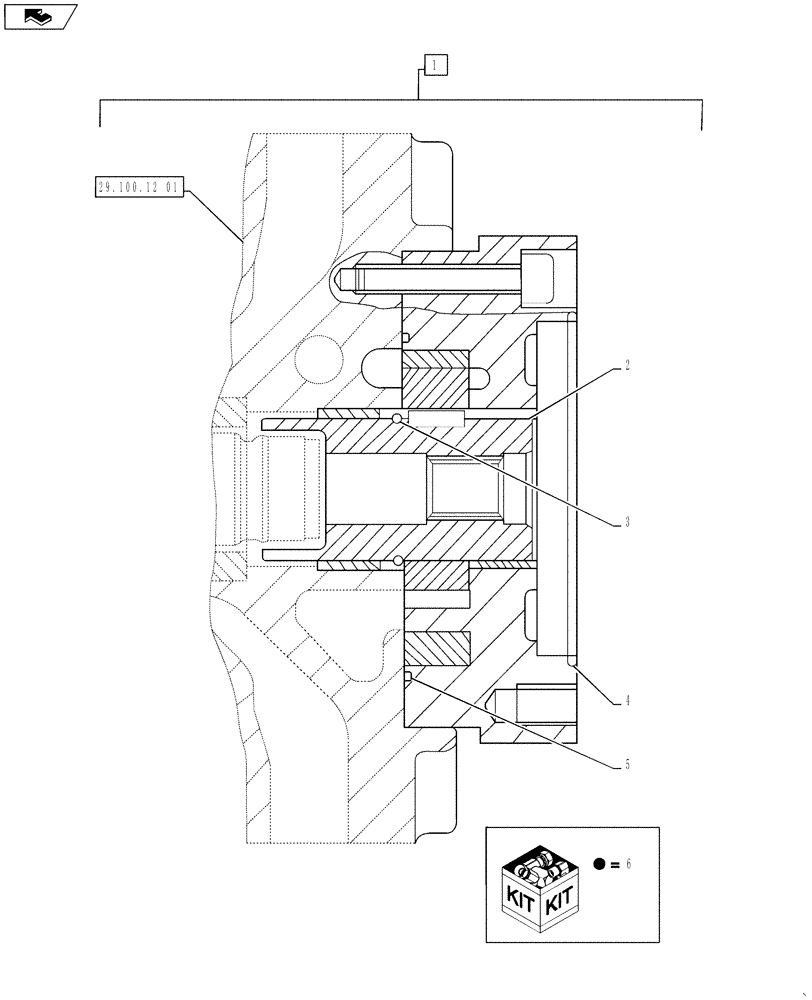

Запчасти Case IH 3230 (29.100.12[08]) - LH HYDROSTATIC PUMP, INTERNAL GEAR ASSEMBLY, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

84416331

HYDRAULIC PUMP

Internal Gear Pump Assembly, Includes Ref 2 - 6 And All Parts On Fig 29.100.12(09)

1шт.

1

84416331R

REMAN-HYD PUMP

3230 PATRIOT SPRAYER, Internal Gear Pump Assembly, LH, SN YCT032640 AND AFTER (7/09-)

1шт.

1

84416331C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87601550

BUSHING

Bushing

1шт.

3

87601553

SNAP RING

Drive Shaft

1шт.

4

84254610

RING

Quad

1шт.

5

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

6

84579672

SEAL KIT

Internal Gear Pump

1шт.
