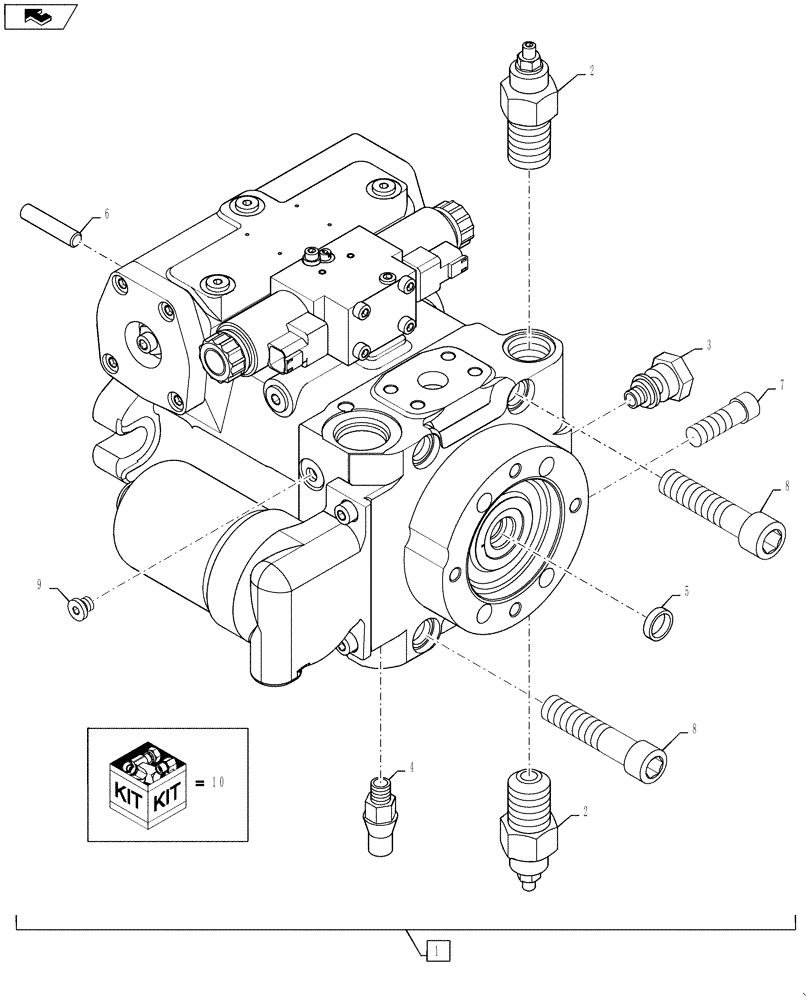

Запчасти Case IH 3230 (29.100.12[04]) - LH HYDROSTATIC PUMP PORT PLATES WITH VALVES, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

87601539

MOUNTING PLATE

Port, With Valves, Includes Ref 2 - 10

1шт.

2

87601546

VALVE PRESSURE RELIE

Port Plate, 450 Bar

2шт.

See Fig 29.100.12(05) For Service Parts

1шт.

3

87601547

VALVE

Relief, Charge Pump, 29 Bar

1шт.

See Fig 29.100.12(06) For Service Parts

1шт.

4

87601549

HYDRAULIC VALVE

Pressure Override

1шт.

See Fig 29.100.12(07) For Service Parts

1шт.

5

87758213

BUSHING

Pump Shaft

1шт.

6

87650369

PIN

M6 x 12

2шт.

7

87758207

BOLT

M8 x 1

3шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

87516835

PLUG

7/16 - 20, Plug

2шт.

10

87603572

SEAL KIT

Port Plate

1шт.
