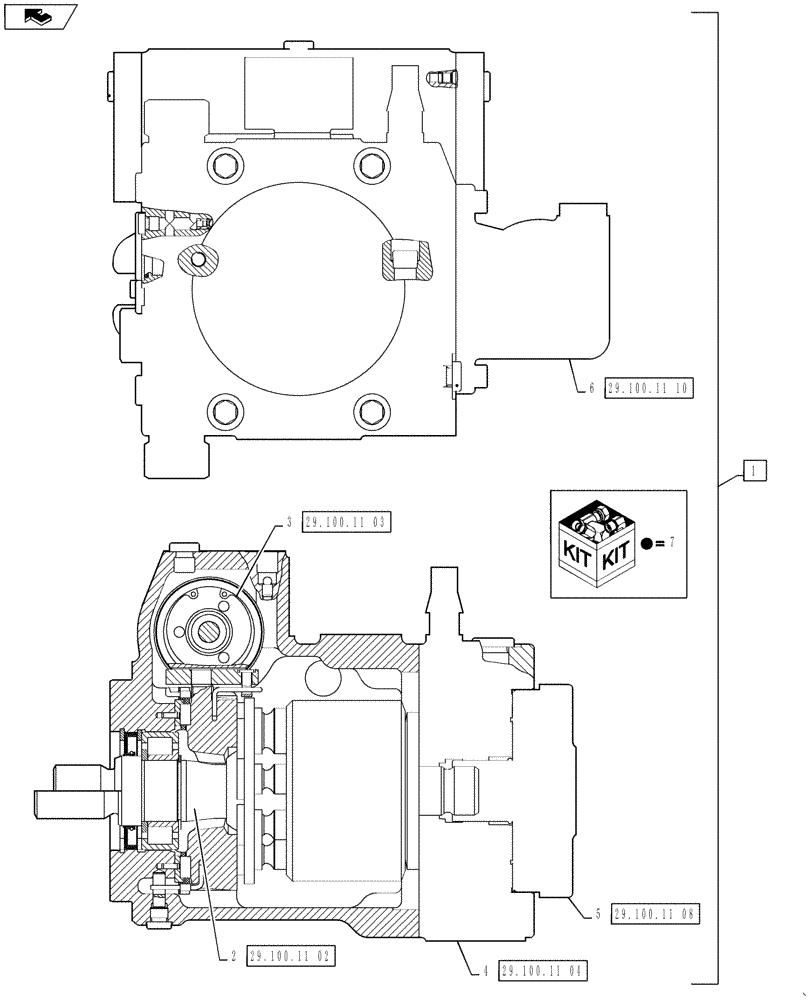

Запчасти Case IH 3230 (29.100.11[01]) - HYDROSTATIC PUMP, WITH 13 TEETH, RH MOUNTED, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

84399370

HYDROSTATIC PUMP,56 CC

Complete Pump, 13 Tooth, Includes Ref 2 - 7

1шт.

1

84399370R

REMAN-HYDROSTAT PUMP

3230 PATRIOT SPRAYER, Complete Pump, 13 Tooth, SN YCT032640 AND AFTER (7/09-)

1шт.

1

84399370C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

87601537

KIT

Rotary Group, Hydrostatic Pump, LH Rotation

1шт.

See Fig 29.100.11(02) For Service Parts

1шт.

3

87601538

CONTROL

Hydraulic

1шт.

See Fig 29.100.11(03) For Service Parts

1шт.

4

84578941

PLATE

Port, With Valves

1шт.

See Fig 29.100.11(04) For Service Parts

1шт.

5

84416332

HYDRAULIC PUMP

Internal Gear Pump Assembly

1шт.

See Fig 29.100.11(08) For Service Parts

1шт.

6

84554579

HYDRAULIC OIL FILTER

Charge Pump

1шт.

See Fig 29.100.11(10) For Service Parts

1шт.

7

87601542

SEAL KIT

Complete, Not Shown

1шт.
