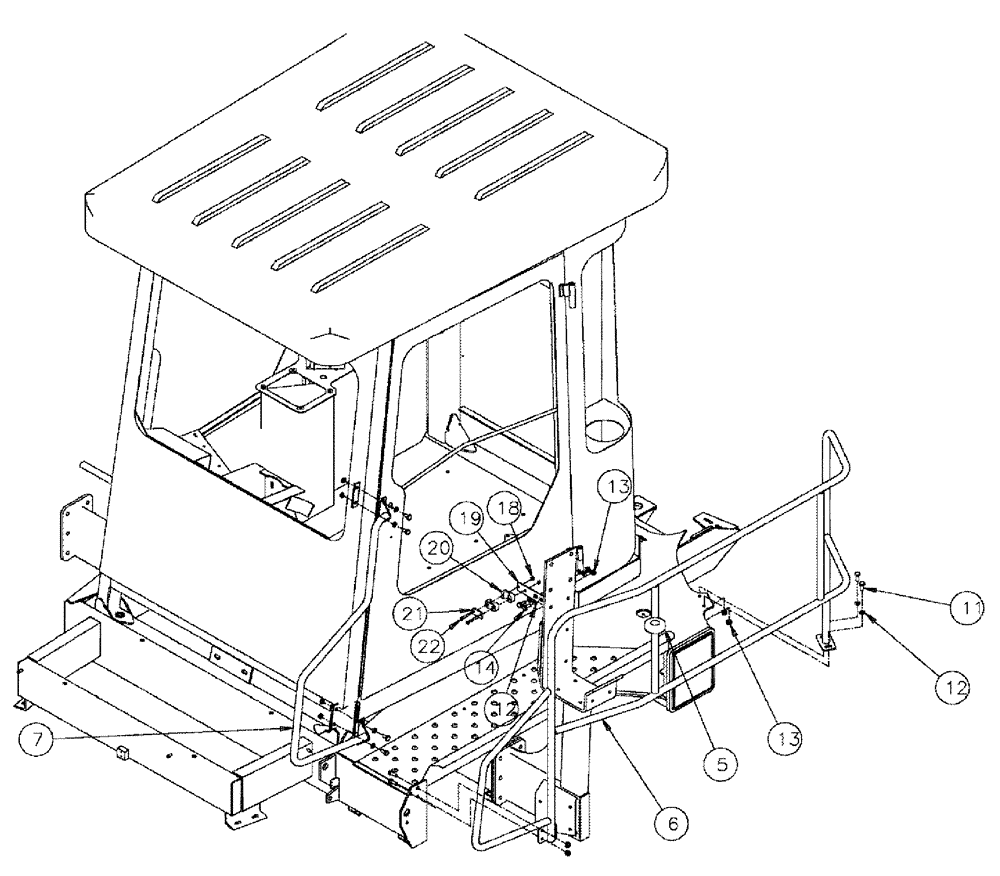

Запчасти Case IH 3210 (04-007) - HANDRAIL GROUP, LH Suspension & Frame

5

87271143

SHOCK ABSORBER

Door Stop

1шт.

6

87270372

HANDRAIL

1шт.

7

BN67722

HANDLE

WDMT, GRAB (FRT LADR)

1шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

12

BN300499

WASHER,M10, 10.9

10шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

18

280129

NUT,1/4"-20

2шт.

19

BN319404

SUPPORT

1шт.

20

BN307080

CLAMP

PAIR, 1" TUBE

1шт.

21

BN307081

PLATE

TOP, CLAMP 1" TUBE

1шт.

22

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.
