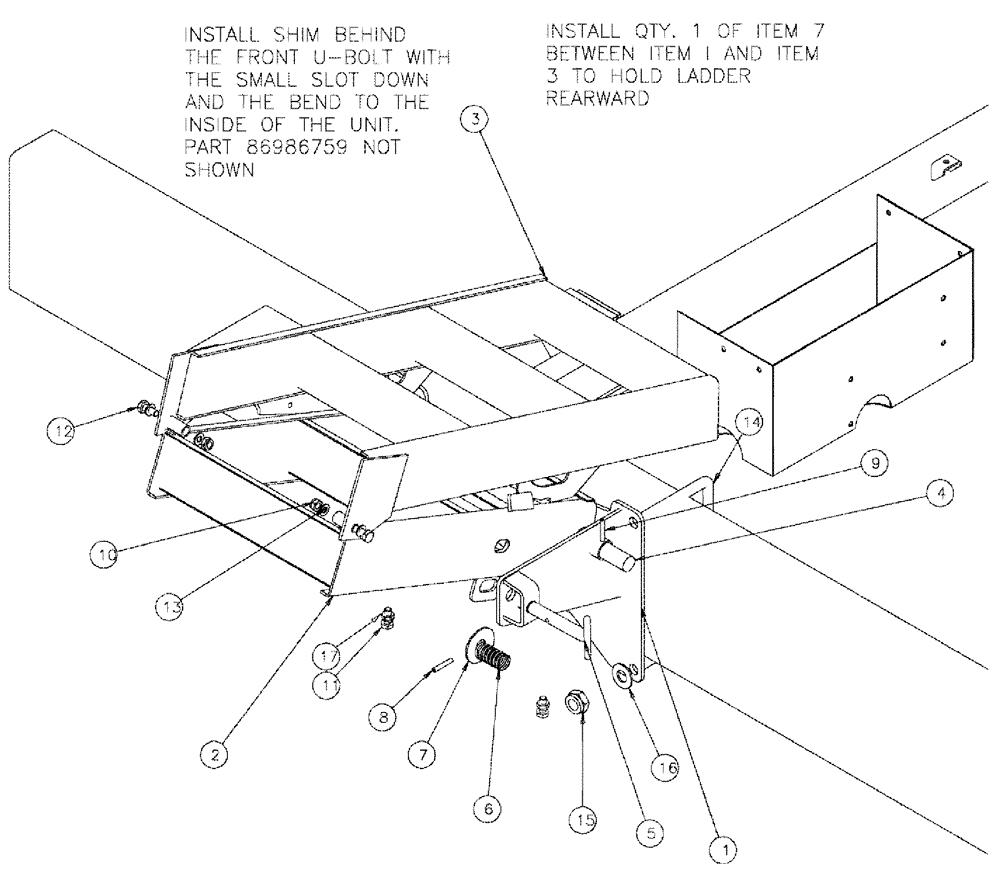

Запчасти Case IH 3210 (04-006) - LADDER - LH Suspension & Frame

86986759

SHIM

u-bolt

1шт.

1

344344A1

MOUNTING PLATE

ladder bolt LH

1шт.

2

BN63582

LADDER

Bi-Fold Top Weldment

1шт.

3

BN312542

LADDER

BI-FOLD (3 STEP)

1шт.

4

BN24557

PIN

1" CFRD x 18.75

1шт.

5

BN25257

PIN

Side Ladder

1шт.

6

BN31937

SPRING

COMPR, .905 X .765 2

1шт.

7

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

WHM, 1" ID X 15 OD X 10 GA

2шт.

8

280431

NUT,1/2"-13, G5

1шт.

9

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

10

100038

NUT,M12 x 1.75, Cl 8

2шт.

11

86624980

BOLT,Hex, M12 x 65mm, Cl 10.9

2шт.

12

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

13

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

14

343924A1

U-BOLT

U, M16-2, 150 x 256

2шт.

15

832-46416

NUT,M16 x 2, Cl 8

4шт.

16

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

17

824-1412

NUT

M12, CL5, ZND

2шт.
