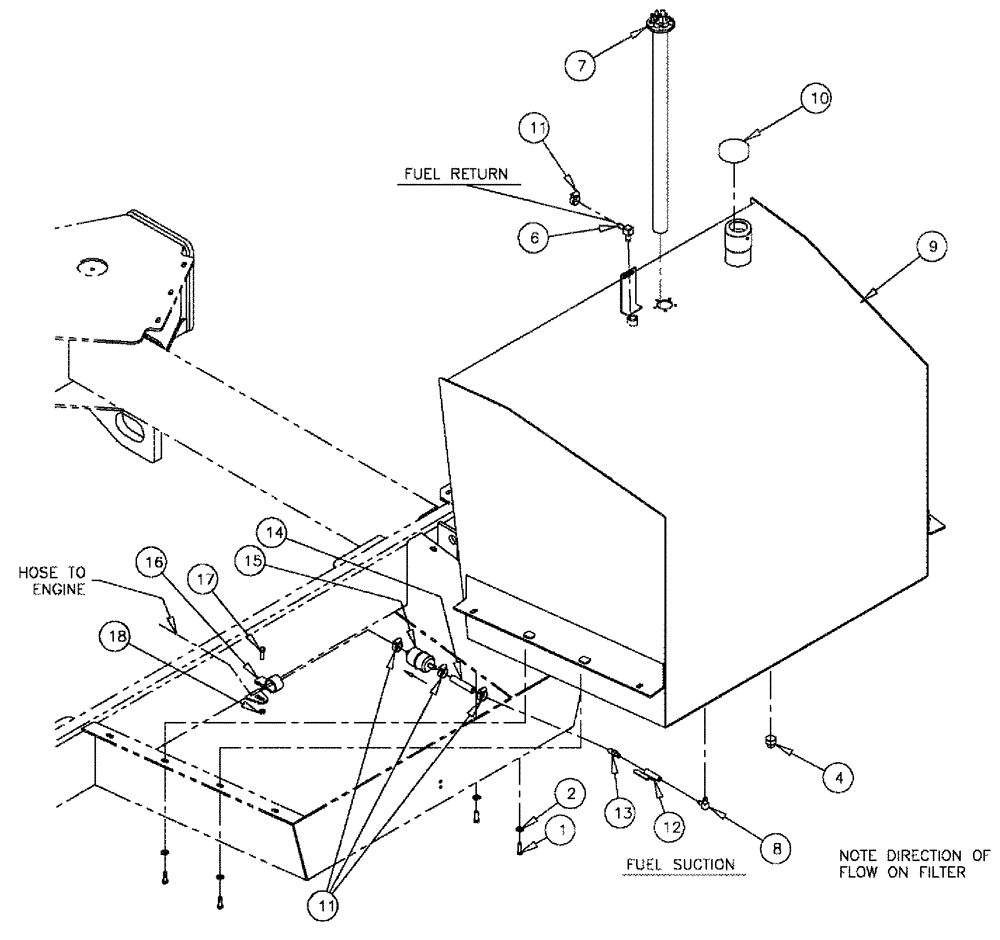

Запчасти Case IH 3210 (04-002) - FUEL TANK GROUP Suspension & Frame

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

2

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

4

BN72220

PLUG

3/4 NPT MI

1шт.

6

BN66466

ELBOW

Barb, 3/8 NPT x 3/8-90°

1шт.

7

BN314868

SENDER UNIT

SENDER FUEL

1шт.

8

BN317993

ELBOW

W-90 DEG. 1/4 X 3/8 NPTM

1шт.

9

BN310174

FUEL TANK

WLDMT, 125 GAL

1шт.

10

BN27530

CAP

Gas, Vented

1шт.

11

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

4шт.

12

BN94071

VALVE

BRONZE BALL, 1/4 NPT

1шт.

13

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

14

BN317990

FUEL HOSE,0.375" ID x 3.00", SAE 30R6, SAE 30R7

1шт.

15

D139225

FILTER, FUEL

3/8" BARBS

1шт.

16

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

17

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

18

88902

NUT,3/8"-16

1шт.
