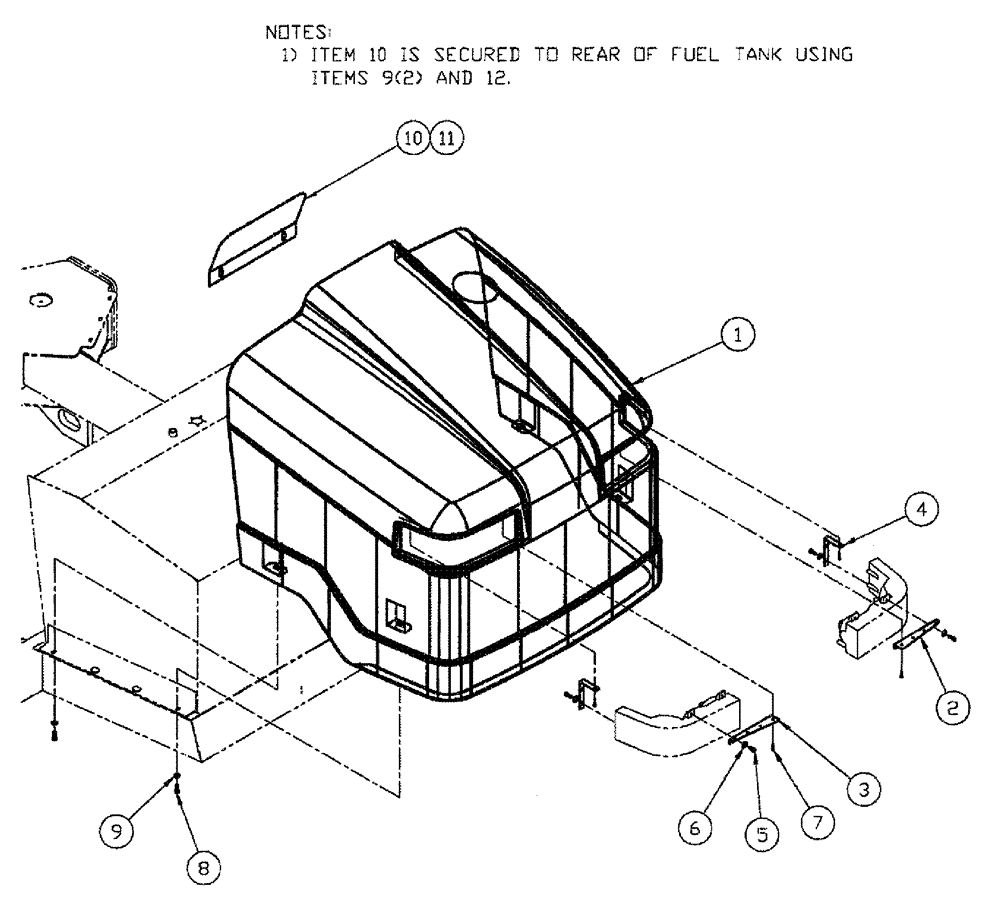

Запчасти Case IH 3210 (04-001) - FUEL TANK HOOD GROUP Suspension & Frame

1

87268619

HOOD

FUEL TANK

1шт.

2

BN303232

MOUNTING PARTS

HEADLAMP, L.H.

1шт.

3

BN303233

BRACKET

Headlamp, RH

1шт.

4

BN303231

BRACKET

Headlamp Back

2шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

6

BN300488

WASHER

M6, Flat, 8.8

8шт.

7

BN303821

RIVET

.18 x .57 Steel

10шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

9

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

6шт.

10

87270099

SUPPORT

HOOD

1шт.

11

BN313904

SEAL

23" OF PART 55196

1шт.

12

86528579

NUT,M8 x 1.25

2шт.
