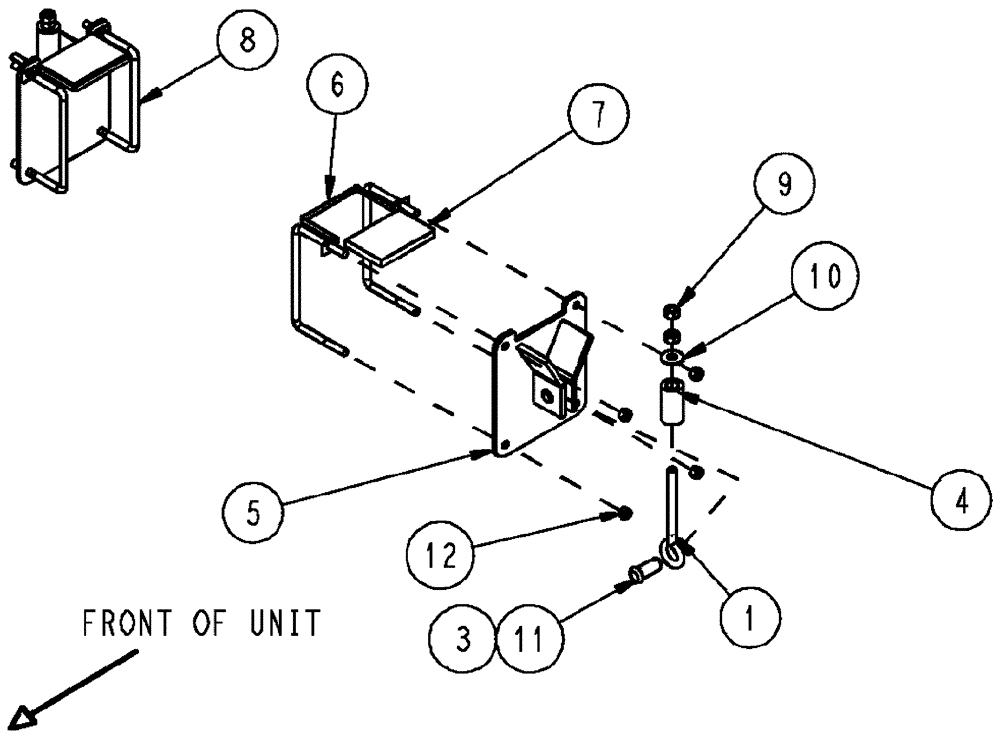

Запчасти Case IH 3210 (09-007) - MOUNTING HARDWARE GROUP, SPINNER BOX Options

1

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

3

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

2шт.

4

BN312850

SPRING

1" ID x 4" Lg-Die

2шт.

5

BN325925

BRACKET, SUPPORTING

WLD, TANK

2шт.

6

343010A1

STRAP

harness, tank pad 778D

2шт.

7

343014A1

BASE

pad, mount, tank front

2шт.

8

343924A1

U-BOLT

U, M16-2, 150 x 256

4шт.

9

86518194

NUT,3/4"-10, G8

4шт.

10

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

4шт.

11

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

2шт.

12

412066

NUT,M16 x 2.0, Cl 8

8шт.

86992215

LOCK NUT,1/2"-13, GC

2шт.

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

2шт.

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

BN54139

GROMMET

2шт.
