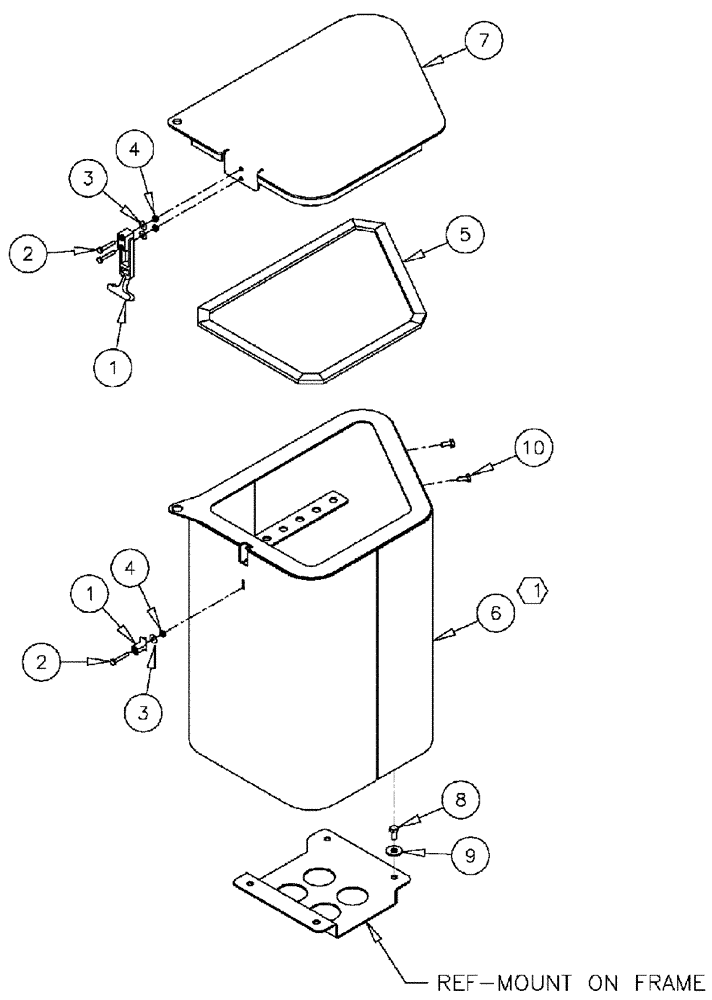

Запчасти Case IH 3210 (09-003) - TOOLBOX GROUP Options

1

BN309337

LATCH

Flexible Draw

1шт.

2

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

3шт.

3

BN310265

WASHER

10, Stainless Steel

3шт.

4

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

5

BN325330

FOAM

TOOLBOX COVER

1шт.

6

BN325336

TOOL BOX

WELDMENT

1шт.

7

BN325337

COVER ASSY

TOOLBOX WELD

1шт.

8

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

4шт.

9

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

10

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.
