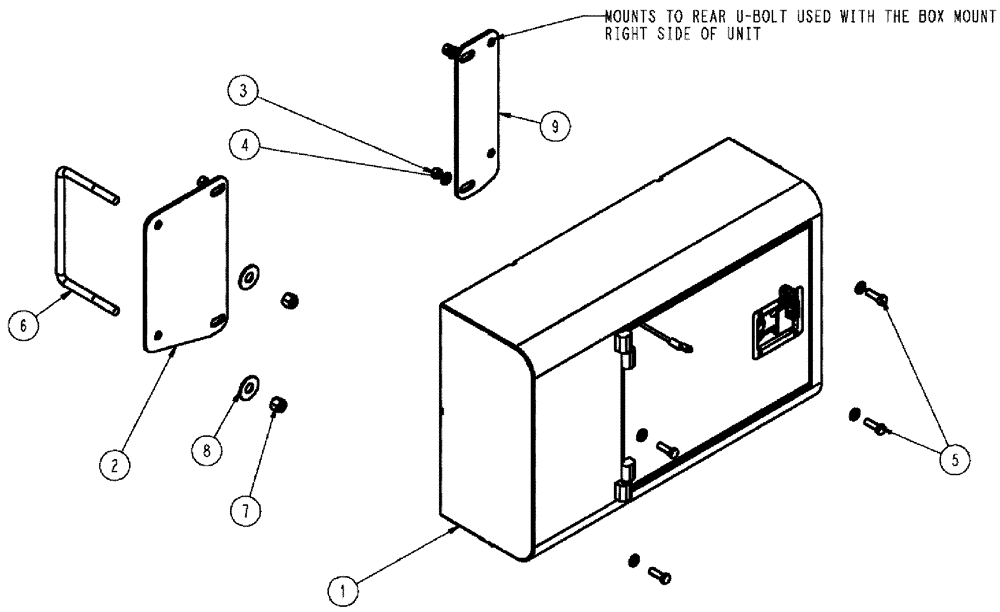

Запчасти Case IH 3210 (09-001) - STORAGE BOX, SPINNER Options

1

NS

NOT SERVICED

Storage Box Group

1шт.

See Fig. 09-002

1шт.

2

86986984

MOUNTING PLATE

Storage Box

1шт.

3

100038

NUT,M12 x 1.75, Cl 8

4шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

6

343924A1

U-BOLT

M16-2, 150 x 256

1шт.

7

412066

NUT,M16 x 2.0, Cl 8

2шт.

8

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

9

87268380

SUPPORT

Mount, Storage Box SP

1шт.
